Shear Force Reduction
Product Feature

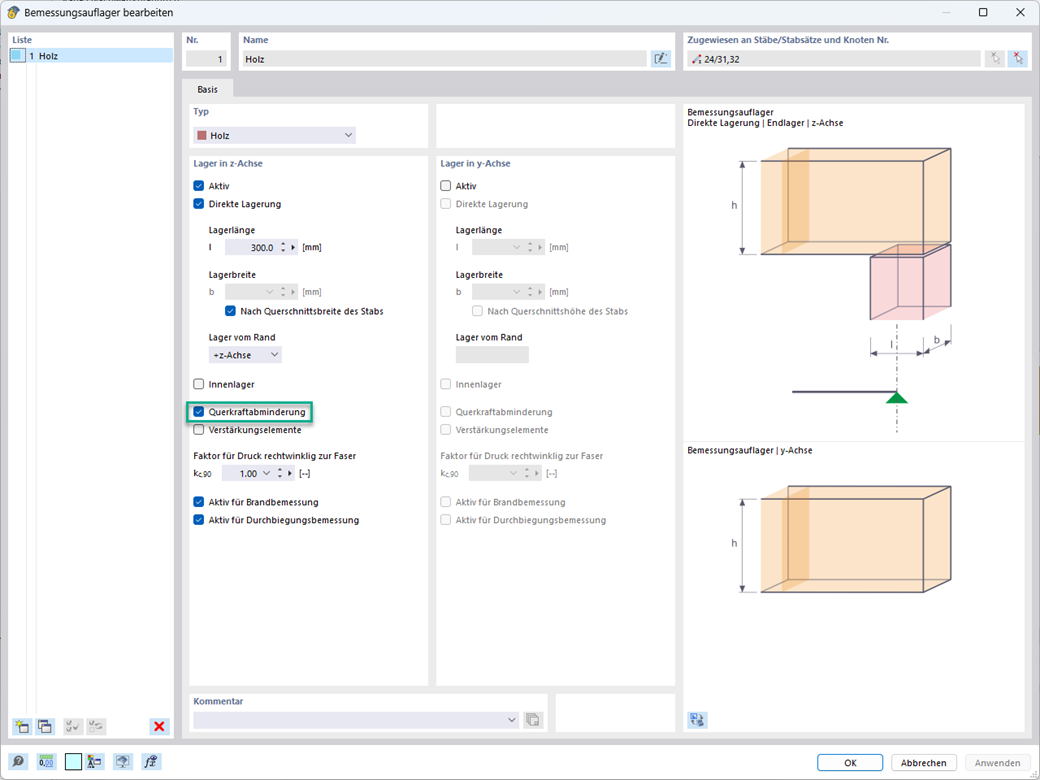

For design supports, you can take into account a shear force reduction. This allows you to perform the shear design with the governing shear force at a distance of the beam height from the support edge.
Keywords
Design Support Shear Force Reduction Shear Design Shear Force
