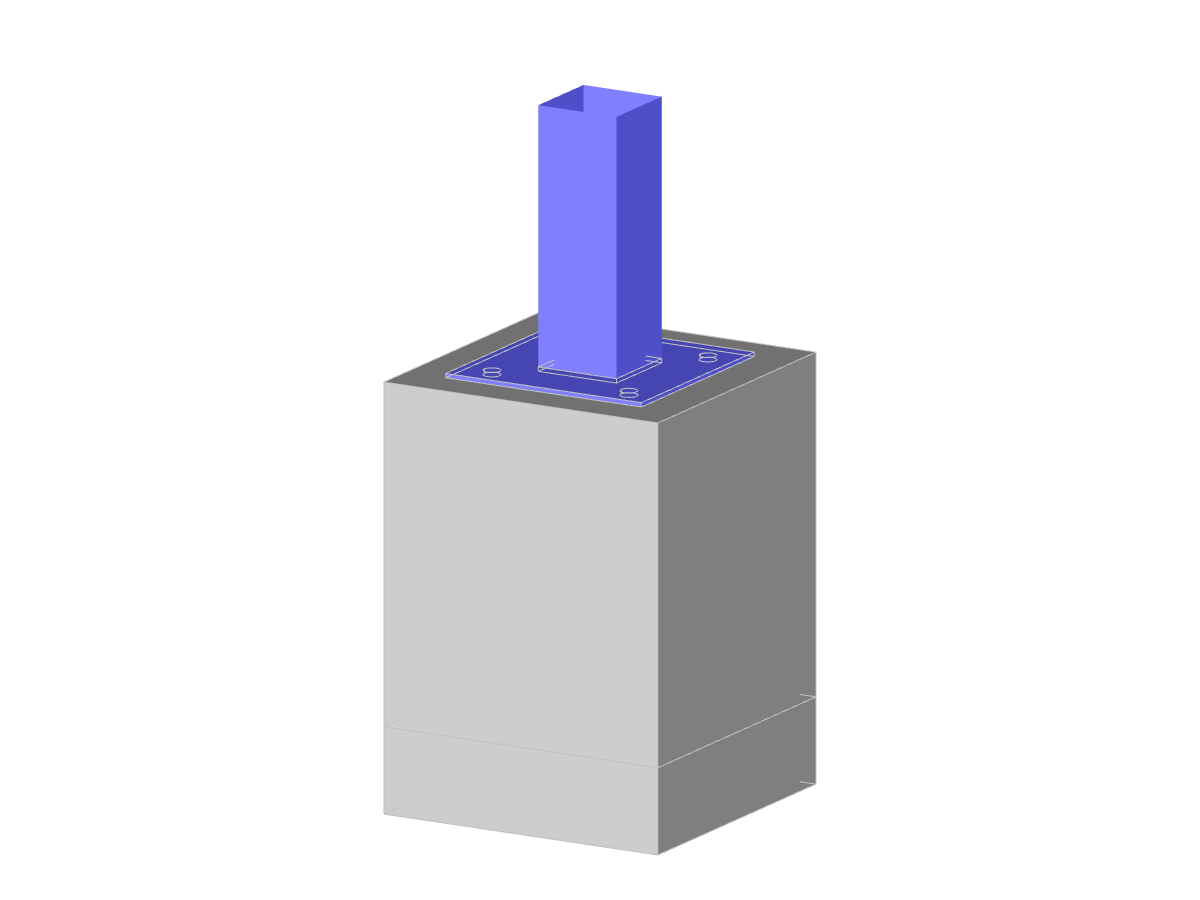

Model 004368 | Rectangular Column Anchor Plate
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 69 |
| Number of Lines | 72 |
| Number of Members | 8 |
| Number of Surfaces | 39 |
| Number of Solids | 3 |
| Number of Load Cases | 1 |
| Total Weight | 0.154 tons |
| Dimensions (Metric) | 0.350 x 0.350 x 0.800 m |
| Dimensions (Imperial) | 1.15 x 1.15 x 2.62 feet |
| Program Version | 5.26.02 |
