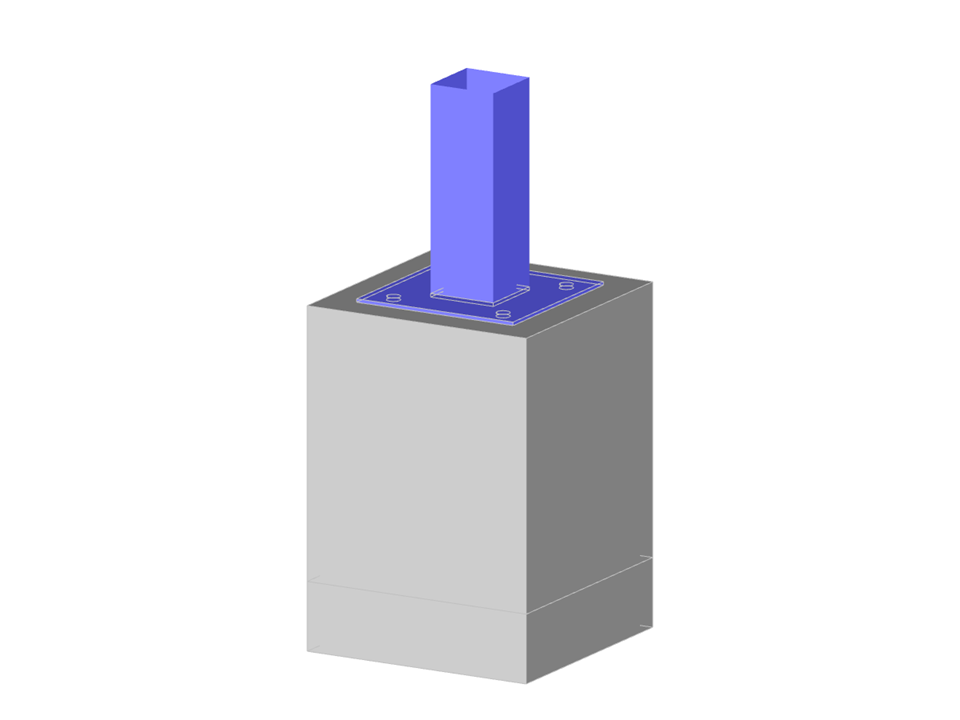

Parameterisation of the geometry of a connection of a structural steel column with square cross-section to a concrete foundation block with metal plate and bolts.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Rectangular Column Anchor Plate
| Block parameters editable dynamically | |
| Number of Nodes | 69 |
| Number of Lines | 72 |
| Number of Members | 8 |
| Number of Surfaces | 39 |
| Number of Solids | 3 |
| Number of Load Cases | 1 |
| Total Weight | 0.154 tons |
| Dimensions | 1.15 x 1.15 x 2.62 feet |
| Program Version | 5.26.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
