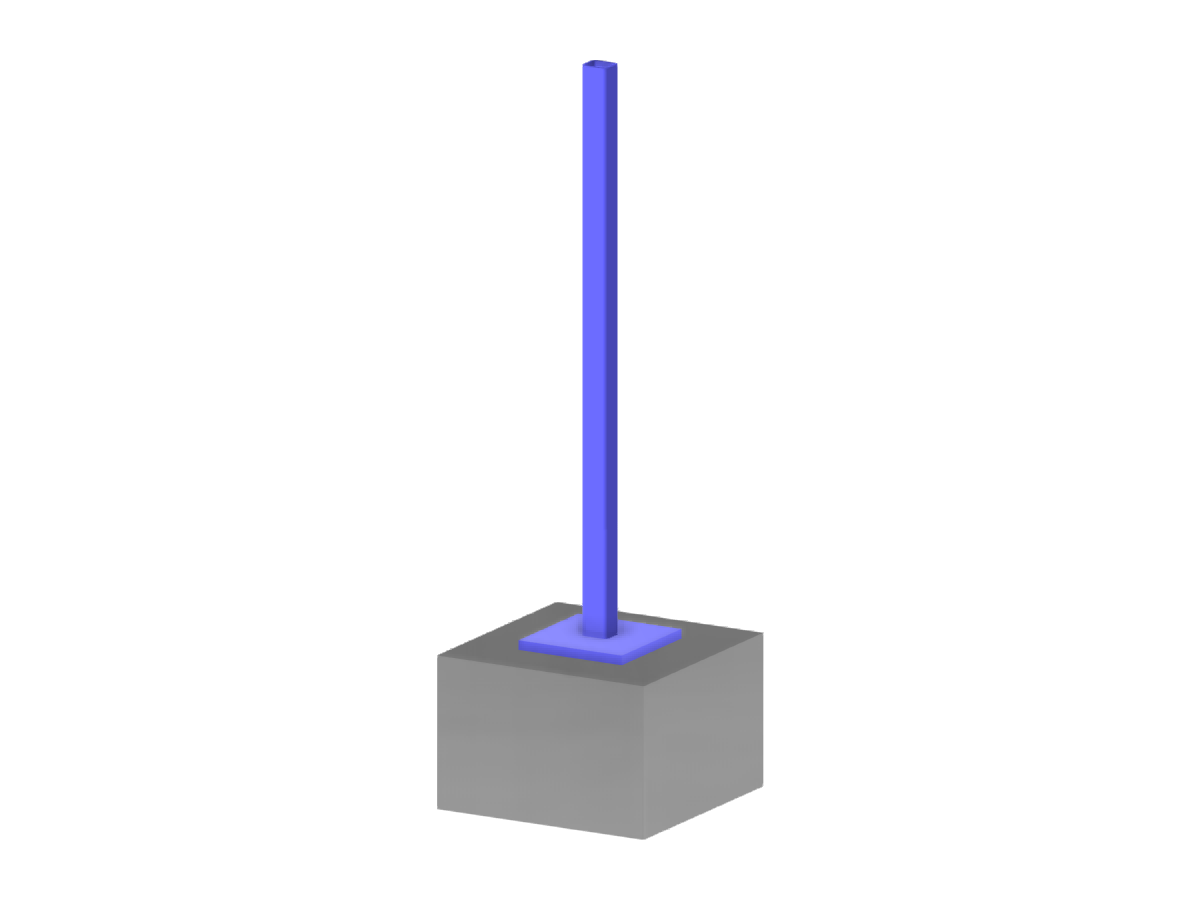

Model 004476 | Connection of Steel Column to Concrete Footing
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 51 |
| Number of Lines | 62 |
| Number of Members | 5 |
| Number of Surfaces | 25 |
| Number of Solids | 2 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.371 tons |
| Dimensions (Metric) | 0.600 x 1.910 x 0.600 m |
| Dimensions (Imperial) | 1.97 x 6.27 x 1.97 feet |
