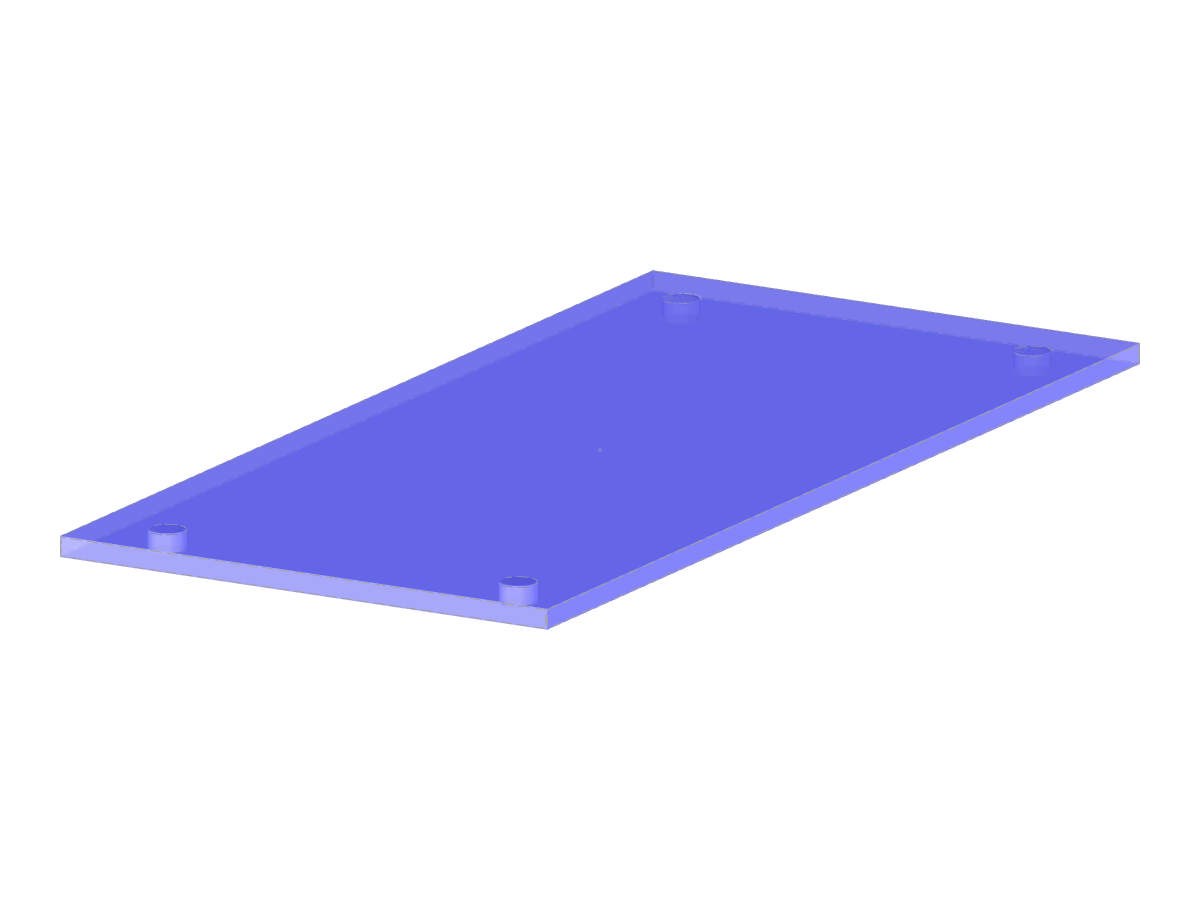

Model 004514 | Insulated Plate with 4 Bolt Holes
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 43 |
| Number of Lines | 30 |
| Number of Members | 4 |
| Number of Surfaces | 18 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 2 |
| Total Weight | 0.022 tons |
| Dimensions (Metric) | 0.258 x 0.544 x 0.025 m |
| Dimensions (Imperial) | 0.85 x 1.78 x 0.08 feet |
| Program Version | 5.11.02 |
