Complete parameterization of a geometry of a steel insulated plate with 4 bolt holes, control of the connection angle, connection plate geometry, hole size, and plate thicknesses.
A model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.

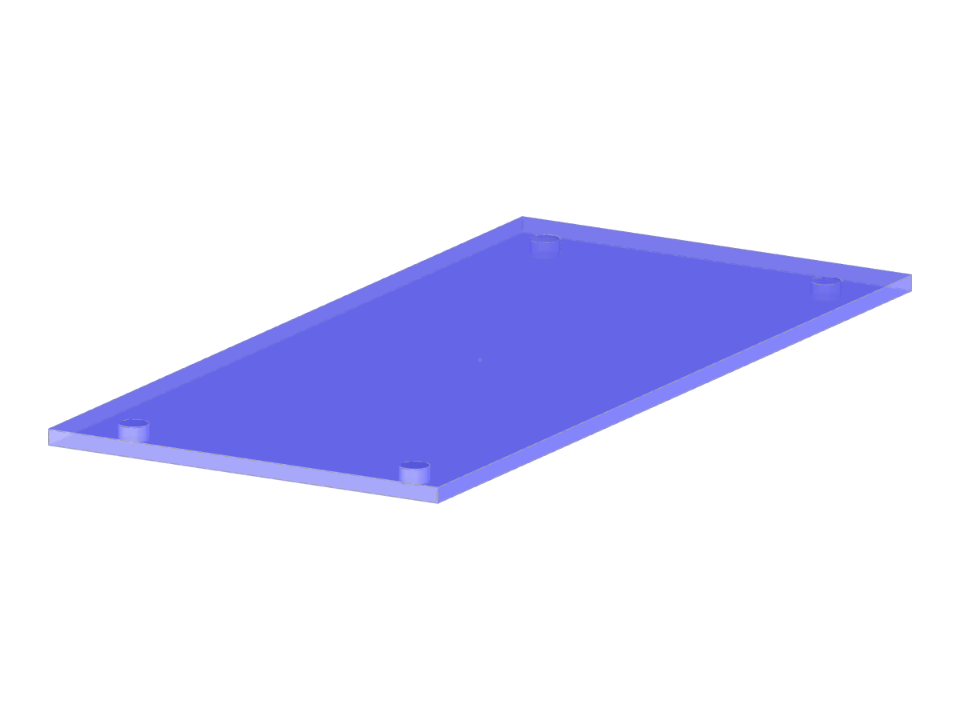

Insulated Plate with 4 Bolt Holes
| Block parameters editable dynamically | |
| Number of Nodes | 43 |
| Number of Lines | 30 |
| Number of Members | 4 |
| Number of Surfaces | 18 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 2 |
| Total Weight | 0.022 tons |
| Dimensions | 0.85 x 1.78 x 0.08 feet |
| Program Version | 5.11.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
