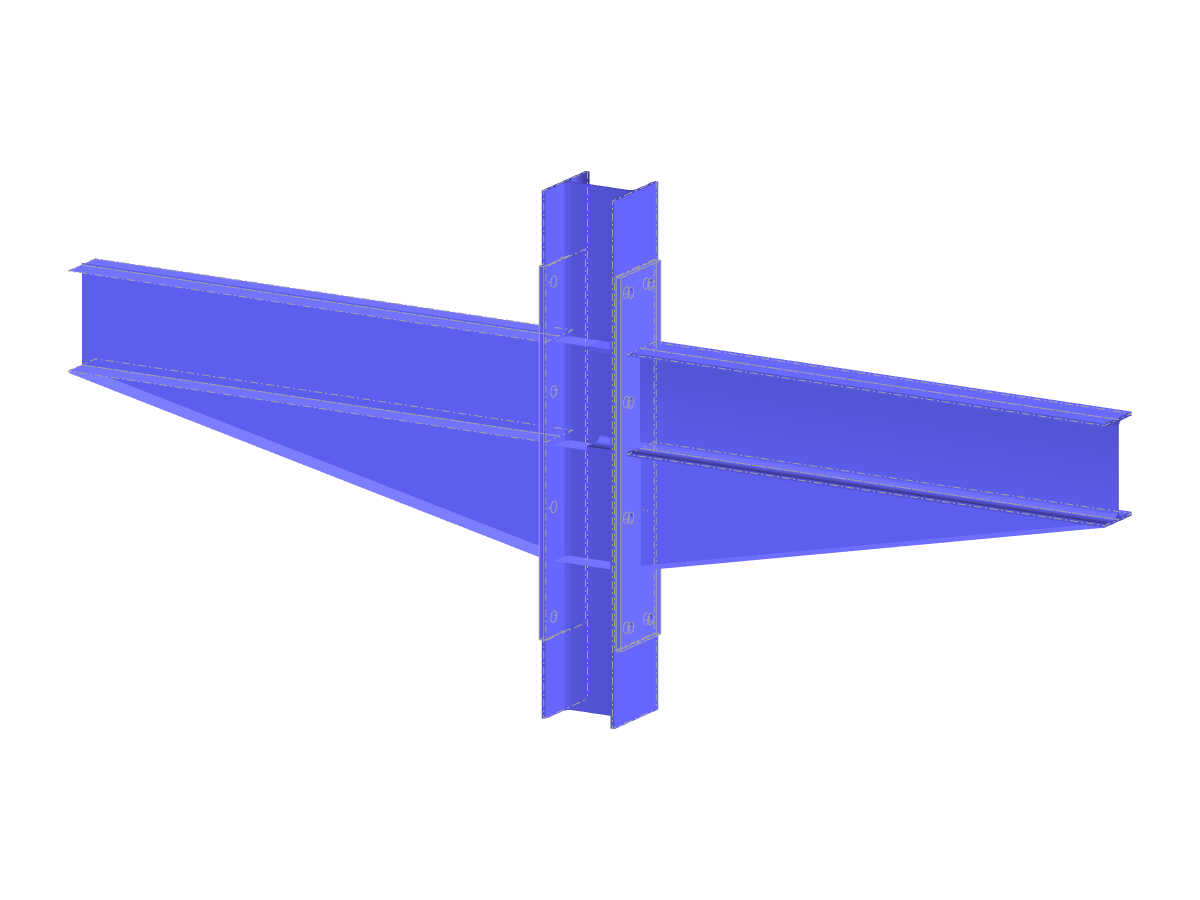

Model 004594 | Column-Beam Connection
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 217 |
| Number of Lines | 208 |
| Number of Members | 18 |
| Number of Surfaces | 91 |
| Number of Solids | 2 |
| Total Weight | 0.409 tons |
| Dimensions (Metric) | 3.000 x 0.220 x 1.370 m |
| Dimensions (Imperial) | 9.84 x 0.72 x 4.49 feet |
| Program Version | 5.27.01 |
