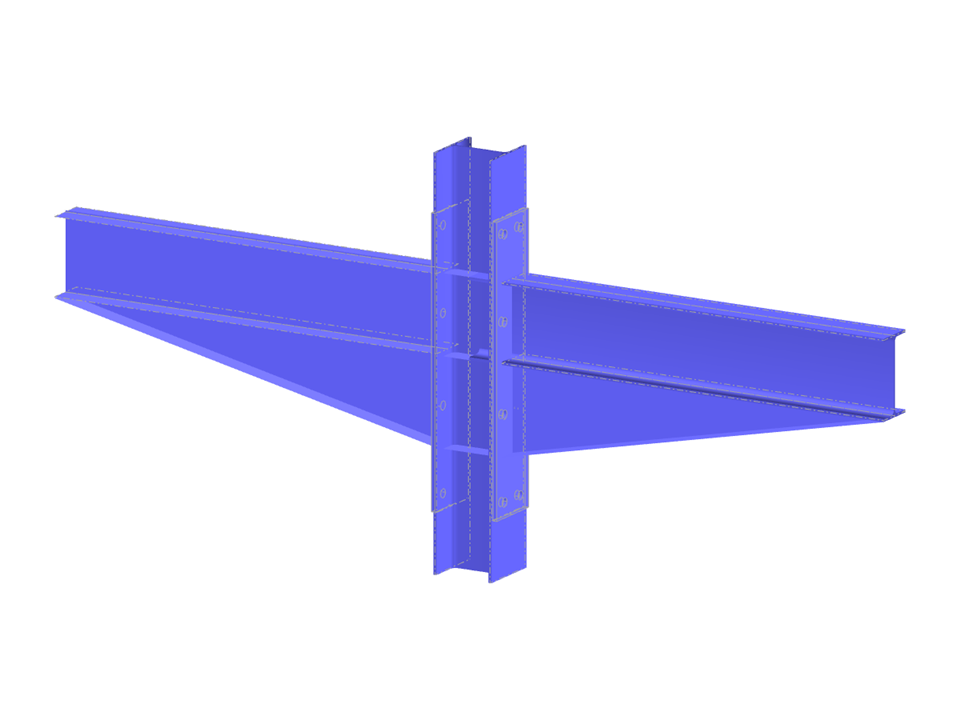

Complete parameterization of the steel connection of an I-section column and a tapered beam, modeled plate and bolt connections.
A model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Column – Beam Connection
| Block parameters editable dynamically | |
| Number of Nodes | 217 |
| Number of Lines | 208 |
| Number of Members | 18 |
| Number of Surfaces | 91 |
| Number of Solids | 2 |
| Total Weight | 0.409 tons |
| Dimensions | 9.84 x 0.72 x 4.49 feet |
| Program Version | 5.27.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
