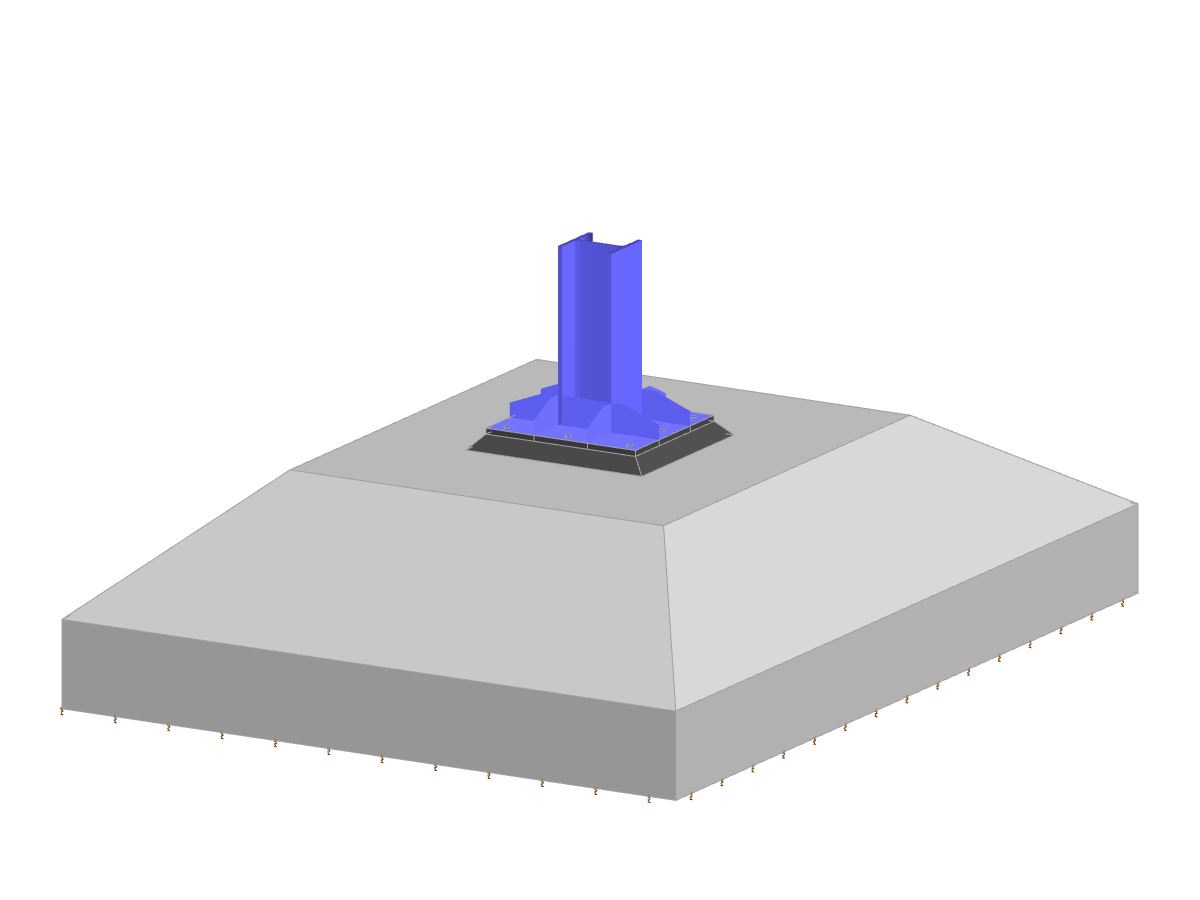

Model 004599 | I-Section Anchor Plate with Footing
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 149 |
| Number of Lines | 165 |
| Number of Members | 17 |
| Number of Surfaces | 70 |
| Number of Solids | 4 |
| Total Weight | 9.574 tons |
| Dimensions (Metric) | 2.300 x 3.000 x 1.370 m |
| Dimensions (Imperial) | 7.55 x 9.84 x 4.49 feet |
| Program Version | 5.26.02 |
