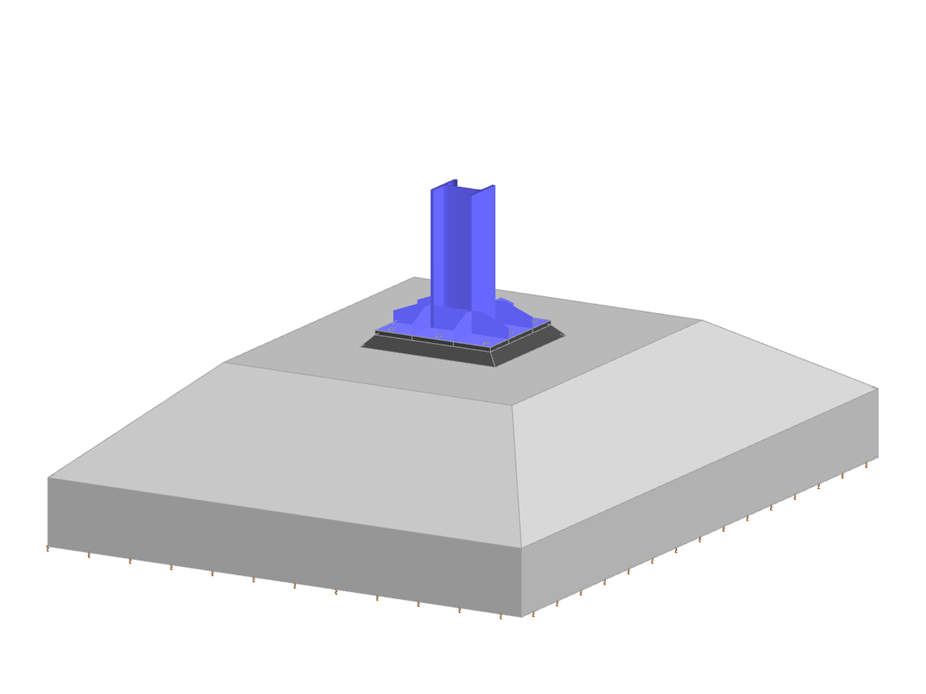

Parameterization of an I-section column connection geometry to a concrete footing using a steel anchor plate with anchor bolts.
A model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Anchor Plate with Footing
| Block parameters editable dynamically | |
| Number of Nodes | 149 |
| Number of Lines | 165 |
| Number of Members | 17 |
| Number of Surfaces | 70 |
| Number of Solids | 4 |
| Total Weight | 9.574 tons |
| Dimensions (Metric) | 2.300 x 3.000 x 1.370 m |
| Dimensions (Imperial) | 7.55 x 9.84 x 4.49 feet |
| Program Version | 5.26.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
