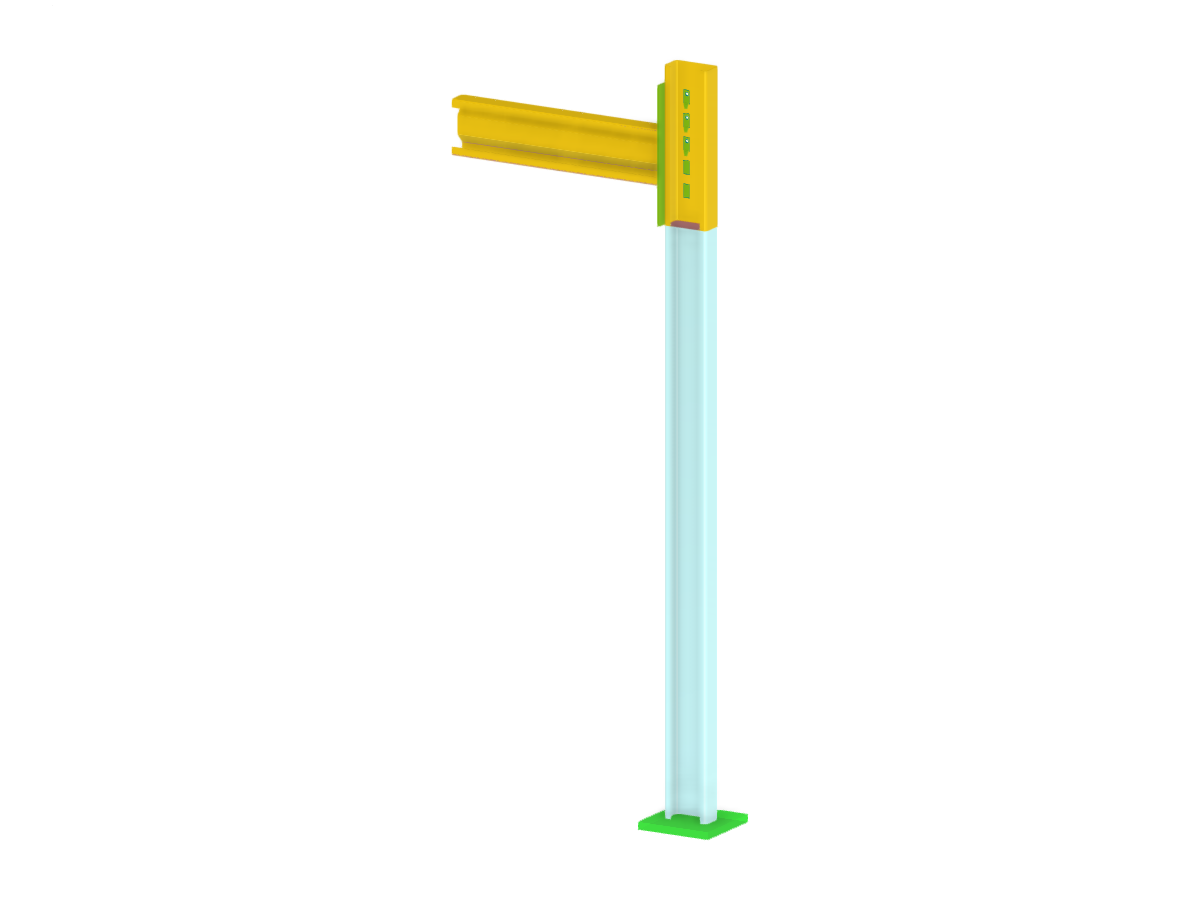

Model 004663 | Beam to Column Connection
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 162 |
| Number of Lines | 193 |
| Number of Members | 3 |
| Number of Surfaces | 36 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 0.008 tons |
| Dimensions (Metric) | 0,604 x 1,600 x 0,068 m |
| Dimensions (Imperial) | 1.98 x 5.25 x 0.22 feet |
