Online Manual RFEM | Surfaces

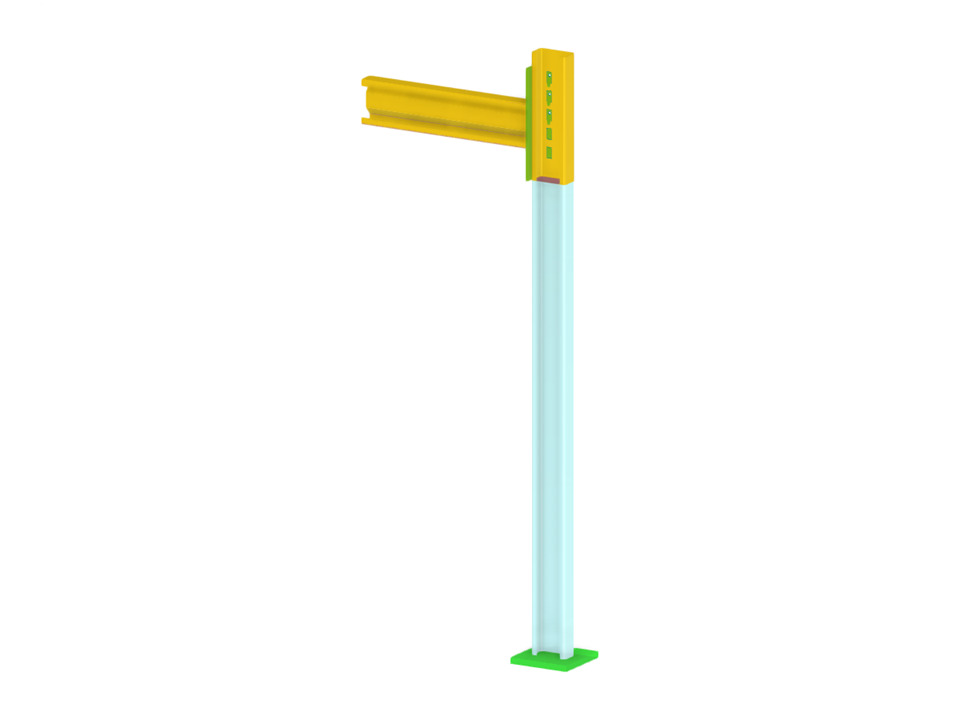

Parameterization of the connection geometry of a sigma profile beam to a C-profile column through a support plate linked to the column by clips. Including modeled nonlinear links, releases, and welding beads.
A model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Beam to Column Connection
| Block parameters editable dynamically | |
| Number of Nodes | 162 |
| Number of Lines | 193 |
| Number of Members | 3 |
| Number of Surfaces | 36 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 0.008 tons |
| Dimensions | 1.98 x 5.25 x 0.22 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
