Displaying Story Results and Sensitivity Coefficient

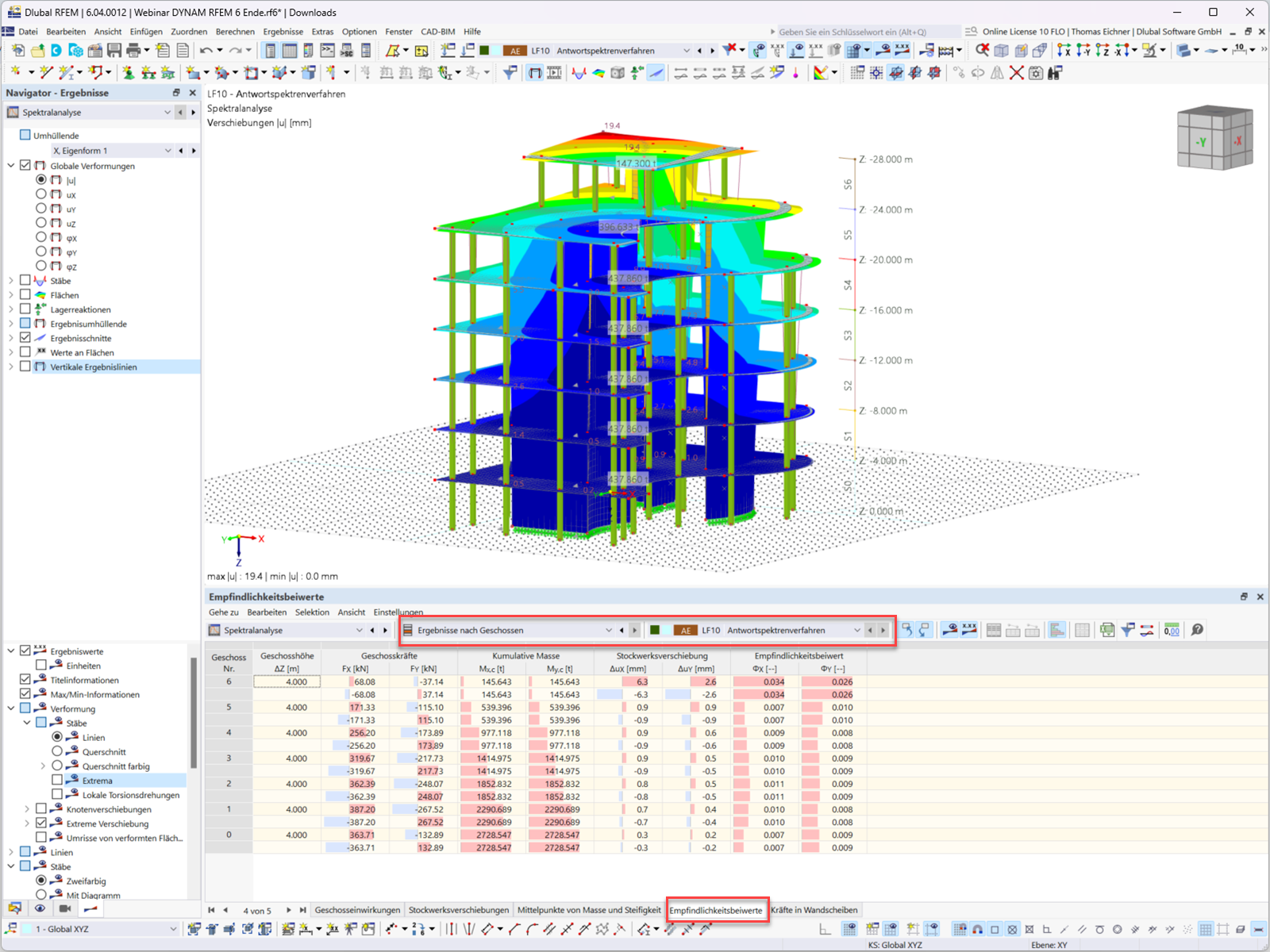

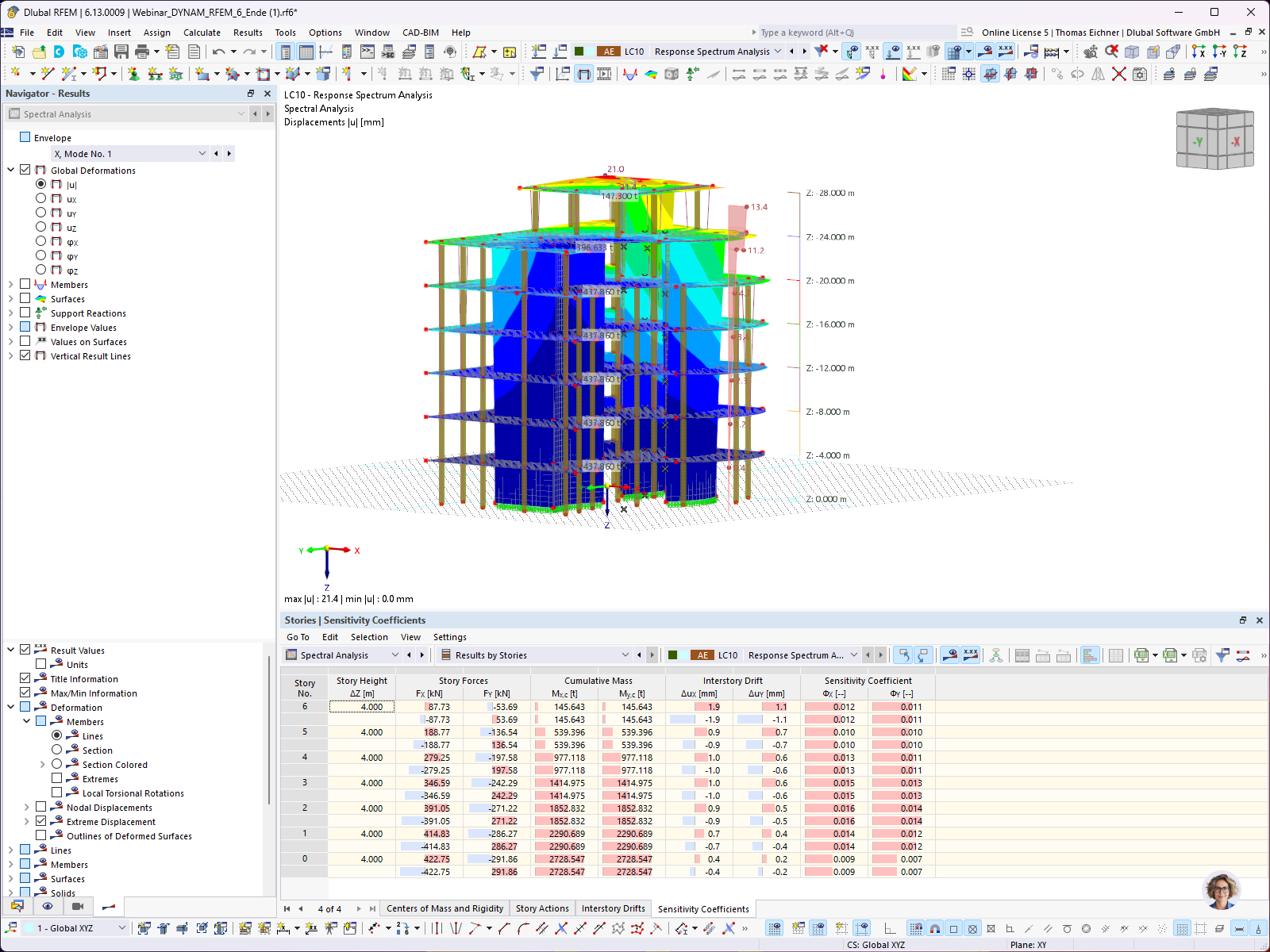

The image illustrates the story results and the sensitivity coefficient within a structural project. This evaluation allows for a detailed consideration of the load-bearing behavior of individual stories under different load combinations. The sensitivity coefficient shows how structural changes or different structural loads affect the overall structure. This visualization is a helpful tool for engineers to identify critical areas in the structure.
3D Model
Specifications
| Number of Nodes | 258 |
| Number of Lines | 281 |
| Number of Members | 121 |
| Number of Surfaces | 53 |
| Number of Solids | 0 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 2 |
| Total Weight | 2733.234 tons |
| Dimensions (Metric) | 21.000 x 28.000 x 26.000 m |
| Dimensions (Imperial) | 68.9 x 91.86 x 85.3 feet |
