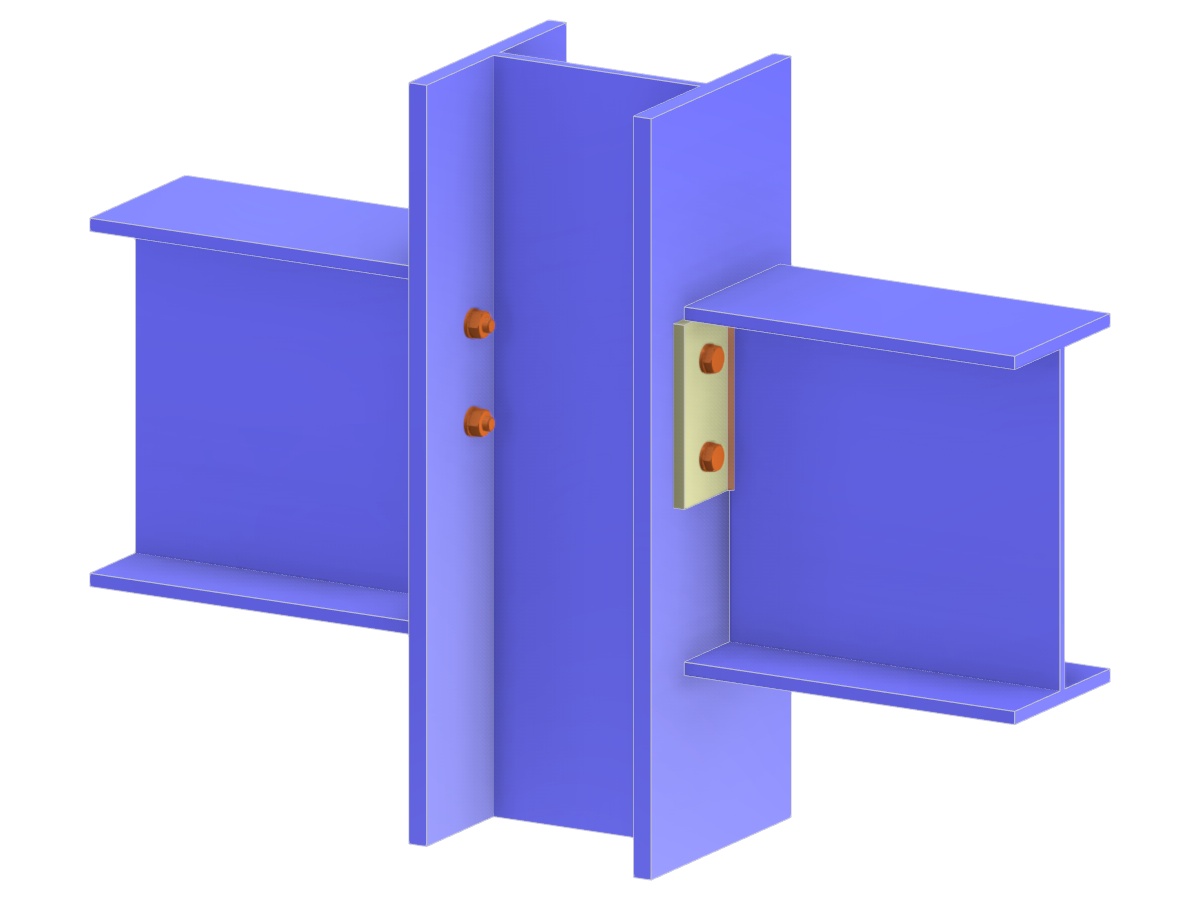

Model 005131 | Beam to Column Flange Connection via Partial-Depth End Plate
3D Model
Specifications
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.078 tons |
| Dimensions (Metric) | 0.860 x 0.620 x 0.000 m |
| Dimensions (Imperial) | 2.82 x 2.03 x 0 feet |
