This model illustrates a double-sided connection where the beam web connects to the column flange. It uses a continuous column with a partial-depth end plate and is bolted. The beam is pinned to allow for rotational flexibility. A suitable choice for projects requiring a strong yet adaptable connection.

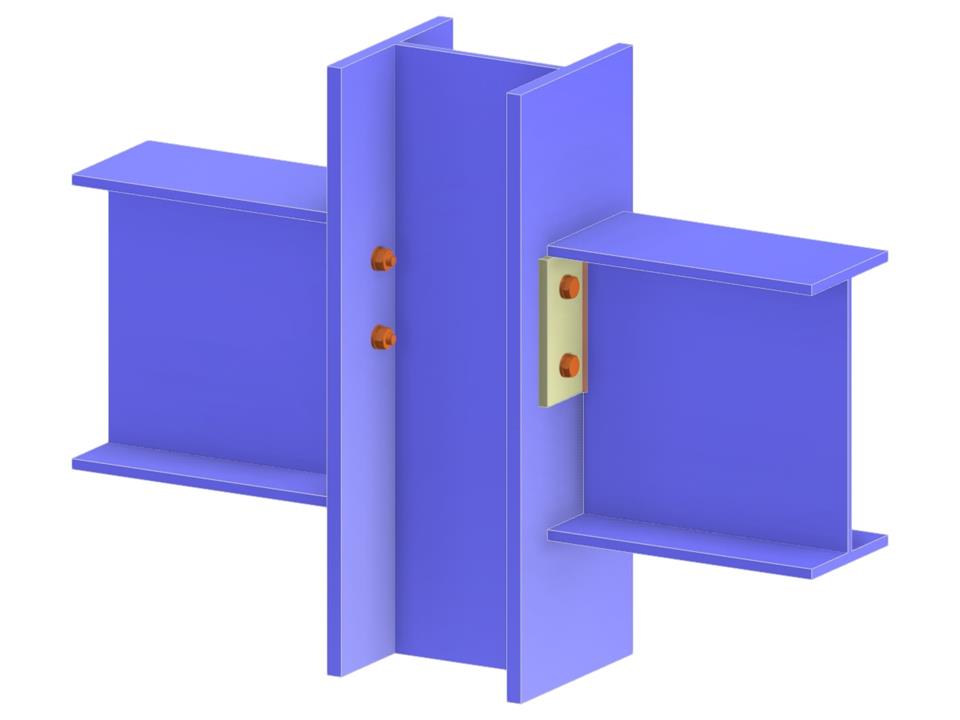

Beam to Column Flange Connection via Partial-Depth End Plate
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.078 tons |
| Dimensions (Metric) | 0.860 x 0.620 x 0.000 m |
| Dimensions (Imperial) | 2.82 x 2.03 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
