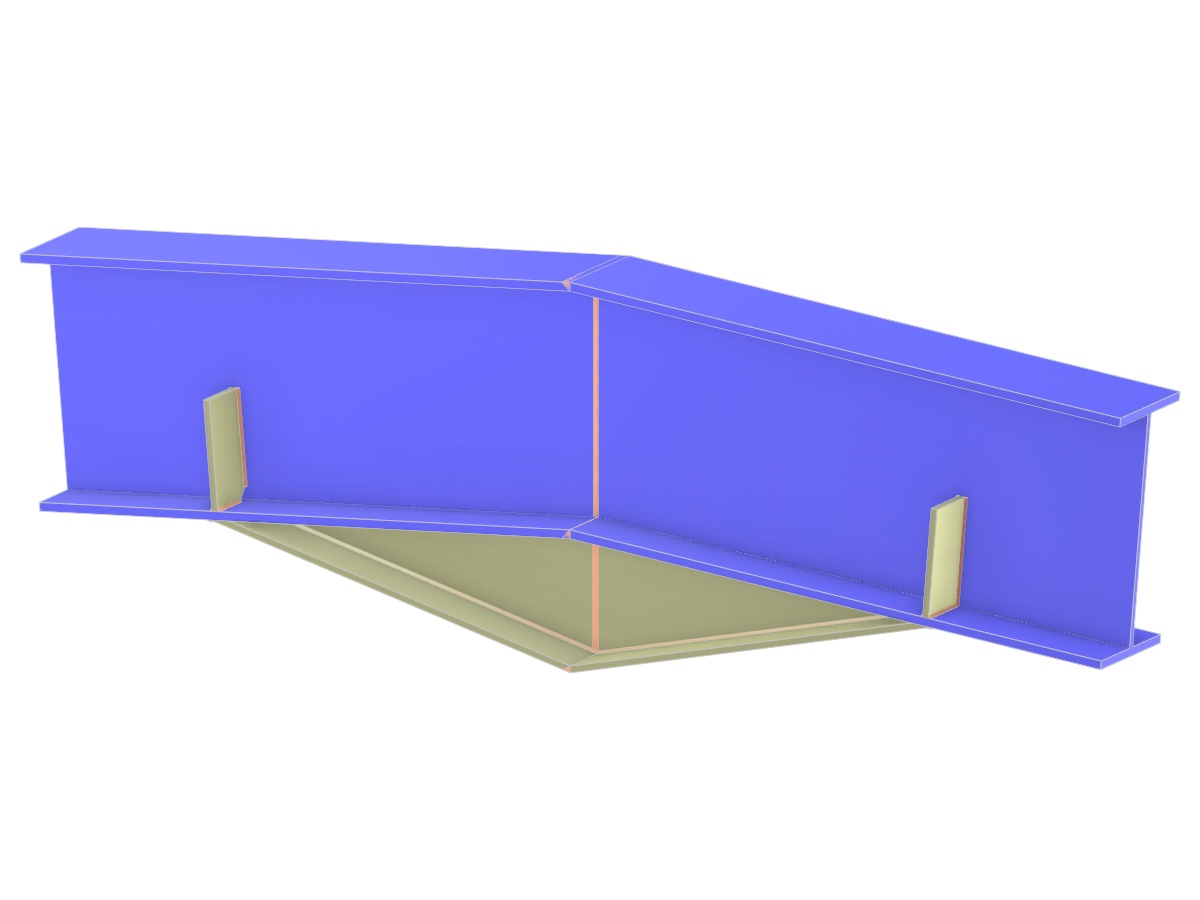

Model 005139 | Beam Splice of Roof Beam at Ridge with Haunch
3D Model
Specifications
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.129 tons |
| Dimensions (Metric) | 2.032 x 0.089 x 0.000 m |
| Dimensions (Imperial) | 6.67 x 0.29 x 0 feet |
