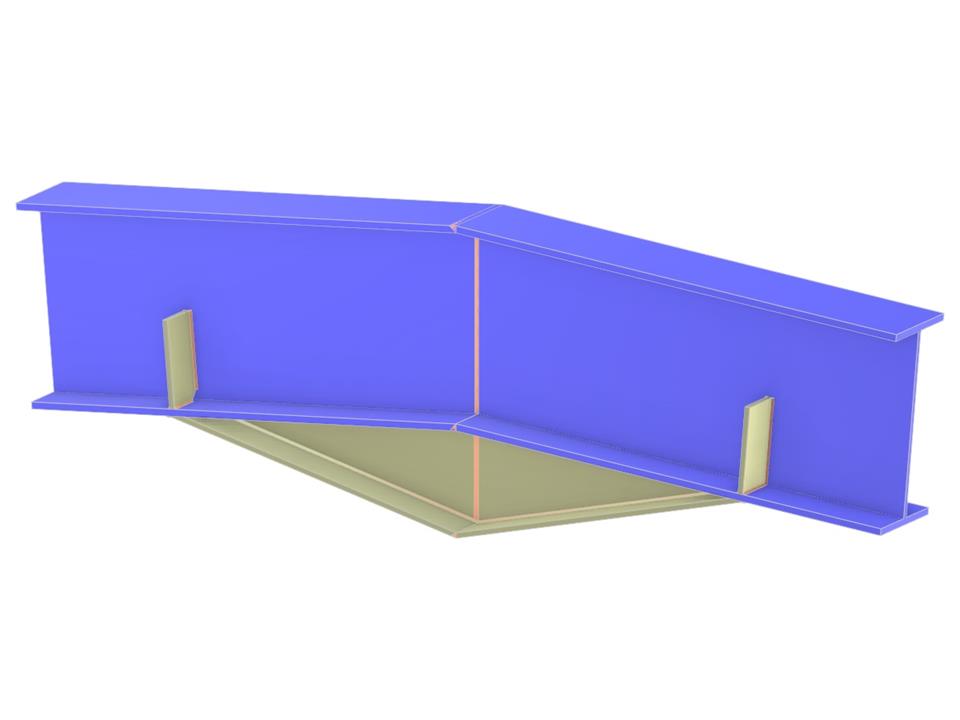

This model demonstrates a beam splice at the ridge of a roof beam, featuring a welded haunch and partial web stiffeners. The design includes a rigid connection, essential for supporting structural loads at the roof apex. It showcases the integration of stiffening components to enhance the connection's rigidity and stability. The welded elements ensure robust performance under various loading conditions.
Beam Splice of Roof Beam at Ridge with Haunch
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.129 tons |
| Dimensions (Metric) | 2.032 x 0.089 x 0.000 m |
| Dimensions (Imperial) | 6.67 x 0.29 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
