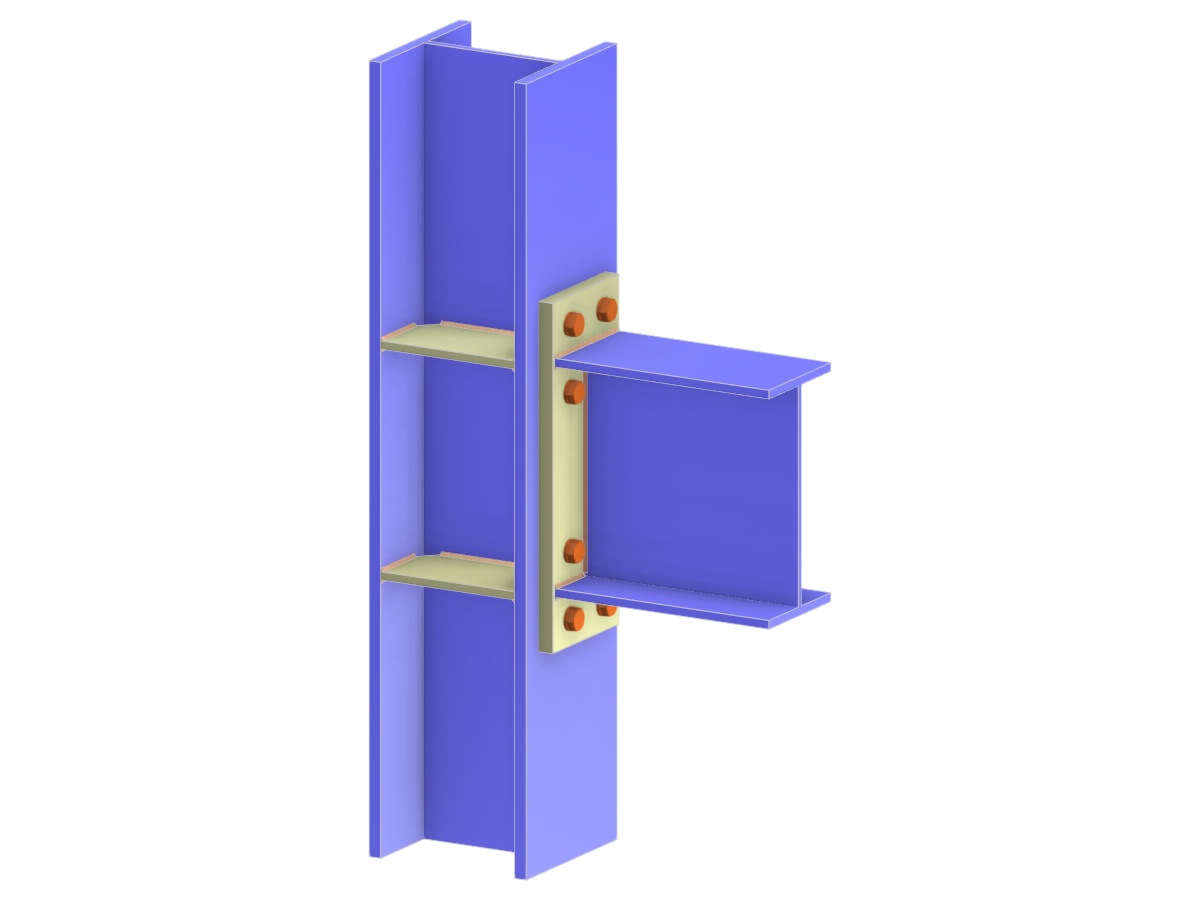

Model 005158 | Beam to Column Flange Connection via Extended End Plate
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.087 tons |
| Dimensions (Metric) | 0,440 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 1.44 x 3.28 x 0 feet |
