This model demonstrates a single-sided beam-to-column connection featuring a beam-to-column-flange configuration with a continuous column. It includes an extended end plate and a column stiffener, designed with bolted connections and a fixed beam setup. The configuration is useful for understanding the load distribution in connection interfaces. Explore the structural efficiency of this setup under various loads and conditions.

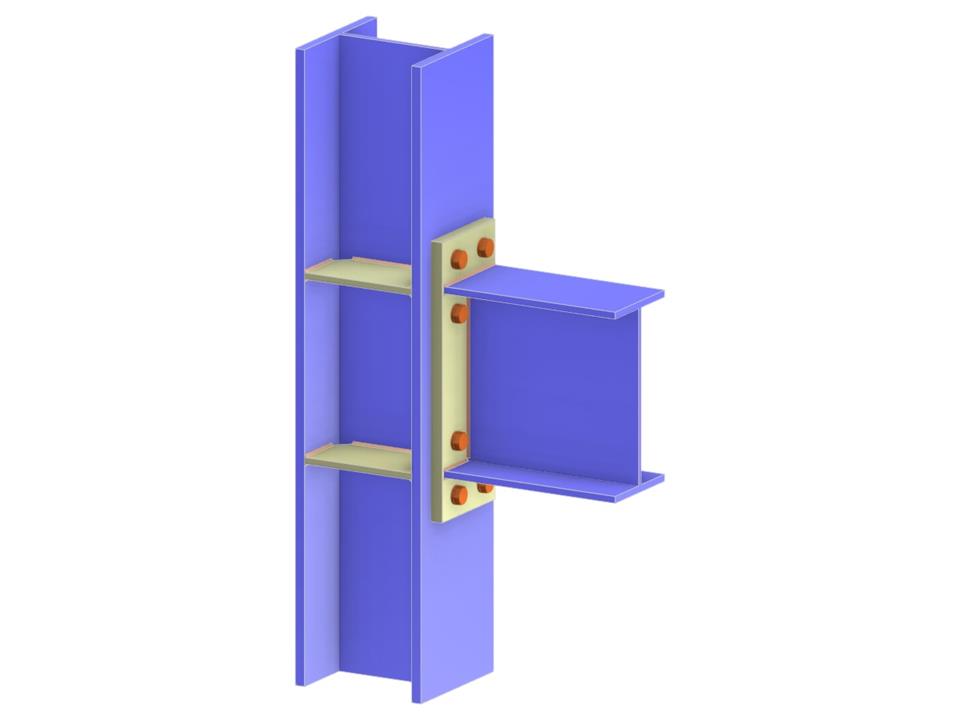

Beam to Column Flange Connection via Extended End Plate
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.087 tons |
| Dimensions (Metric) | 0,440 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 1.44 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
