Structural Deformation of Cantilever Carriage in Engineering

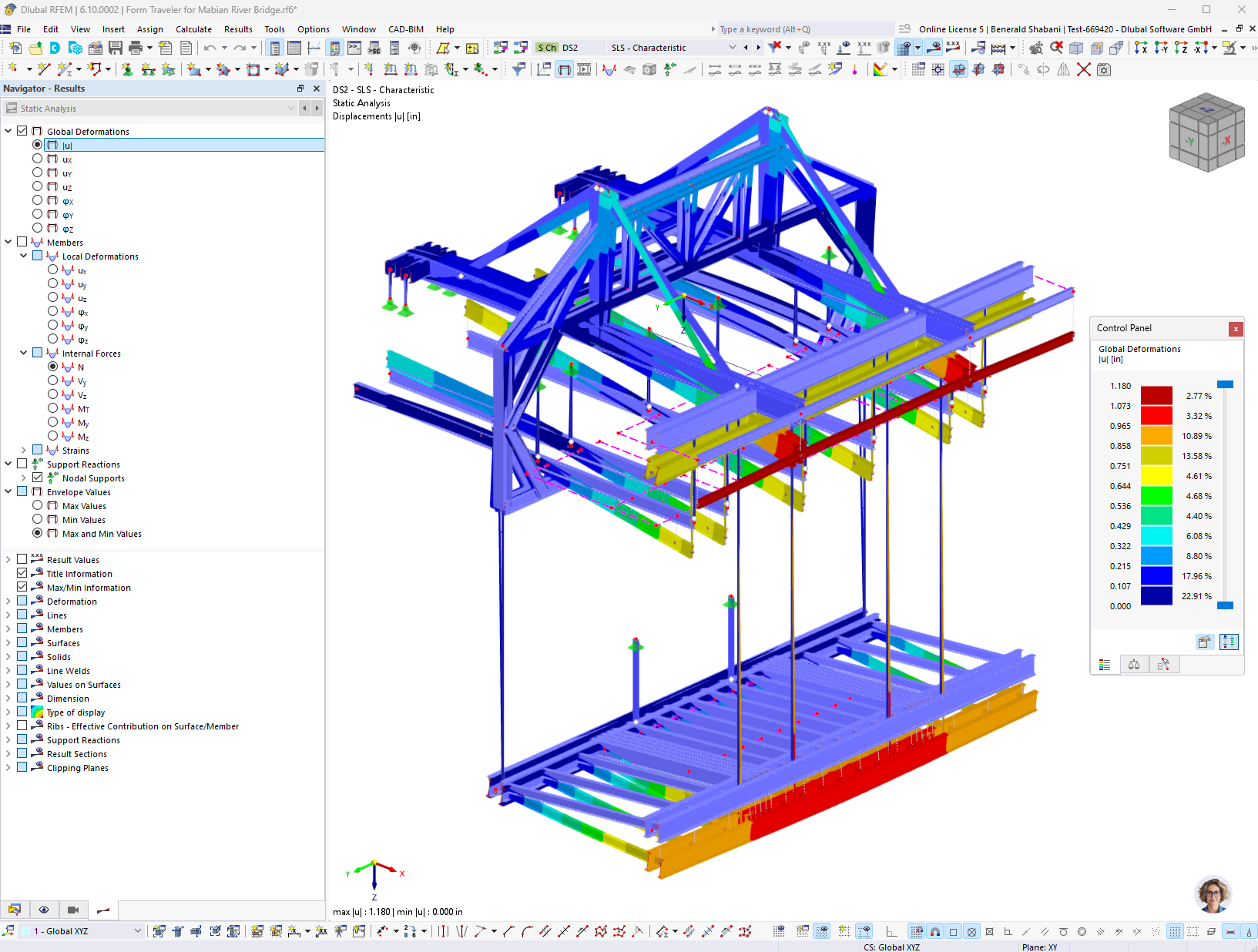

Detailed display of the structural deformation of a cantilever carriage due to vertical and horizontal loads.
The structural deformation of a cantilever carriage is illustrated based on vertical and horizontal loads in construction. The image shows the effects of these loads on the structure, which is crucial for the design and construction of supporting structures. The deformation shown allows for a precise analysis of the resulting structural changes. Photo by © Huaxi Engineering Technology (Shenzhen) Co., Ltd.
3D Model
Specifications
| Number of Nodes | 230 |
| Number of Lines | 335 |
| Number of Members | 334 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 5 |
| Number of Result Combinations | 0 |
| Total Weight | 21.991 tons |
| Dimensions (Metric) | 13.810 x 15.912 x 14.200 m |
| Dimensions (Imperial) | 45.31 x 52.2 x 46.59 feet |
