Model 005656 | Column Base

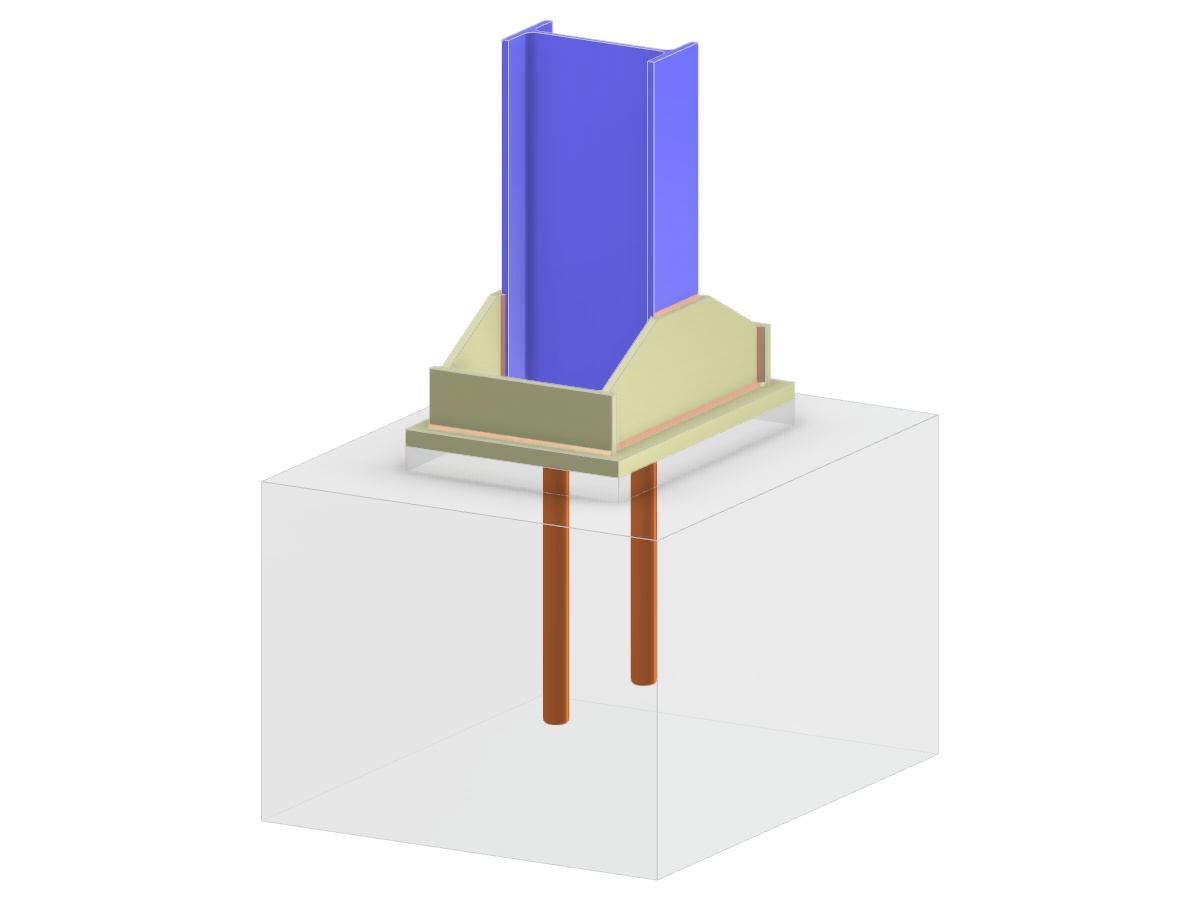

The image displays a detailed model of a column base, including the base plate, stiffeners, I-section, and anchoring elements. The structural components are clearly defined, showcasing their arrangement and connections. The elements are used to support a column, providing stability and load transfer to the foundation.
Used in
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.022 tons |
| Dimensions (Metric) | 0.000 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 0 x 3.28 x 0 feet |
