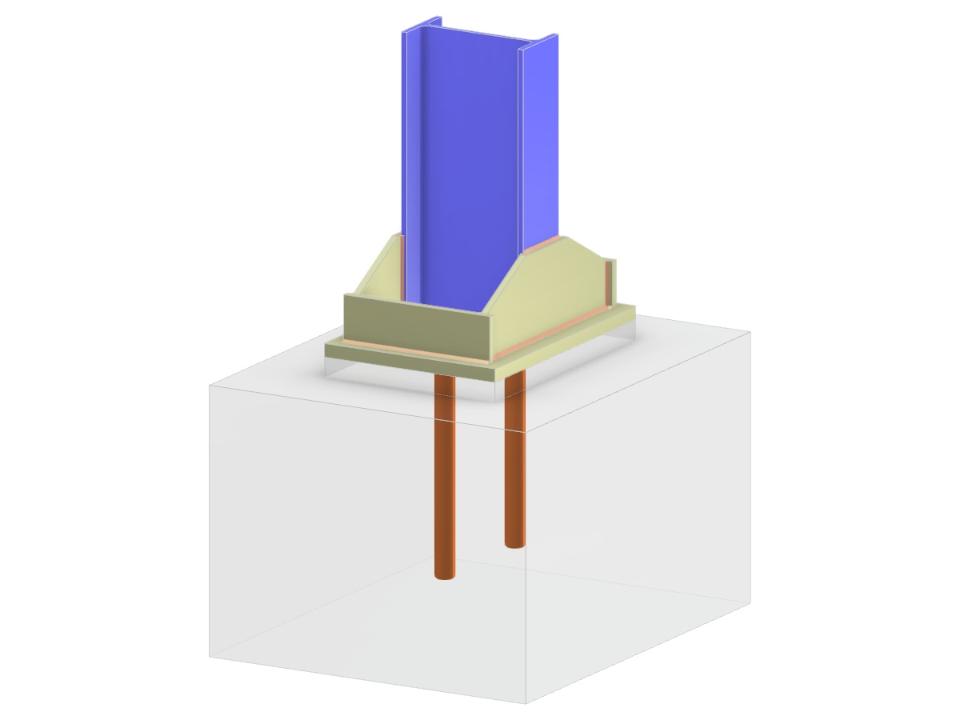

This model describes the design of a steel column base featuring a base plate with stiffeners, an I-section column, and anchoring. The illustration highlights the interaction between the base plate and the column, supported by stiffeners to ensure structural stability. The model is essential for engineers focusing on anchoring and stress distribution in column bases.
Column Base
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.022 tons |
| Dimensions (Metric) | 0.000 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 0 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
