Model 005668 | Column Base with Gusset Plate and Bolted Diagonal Connection

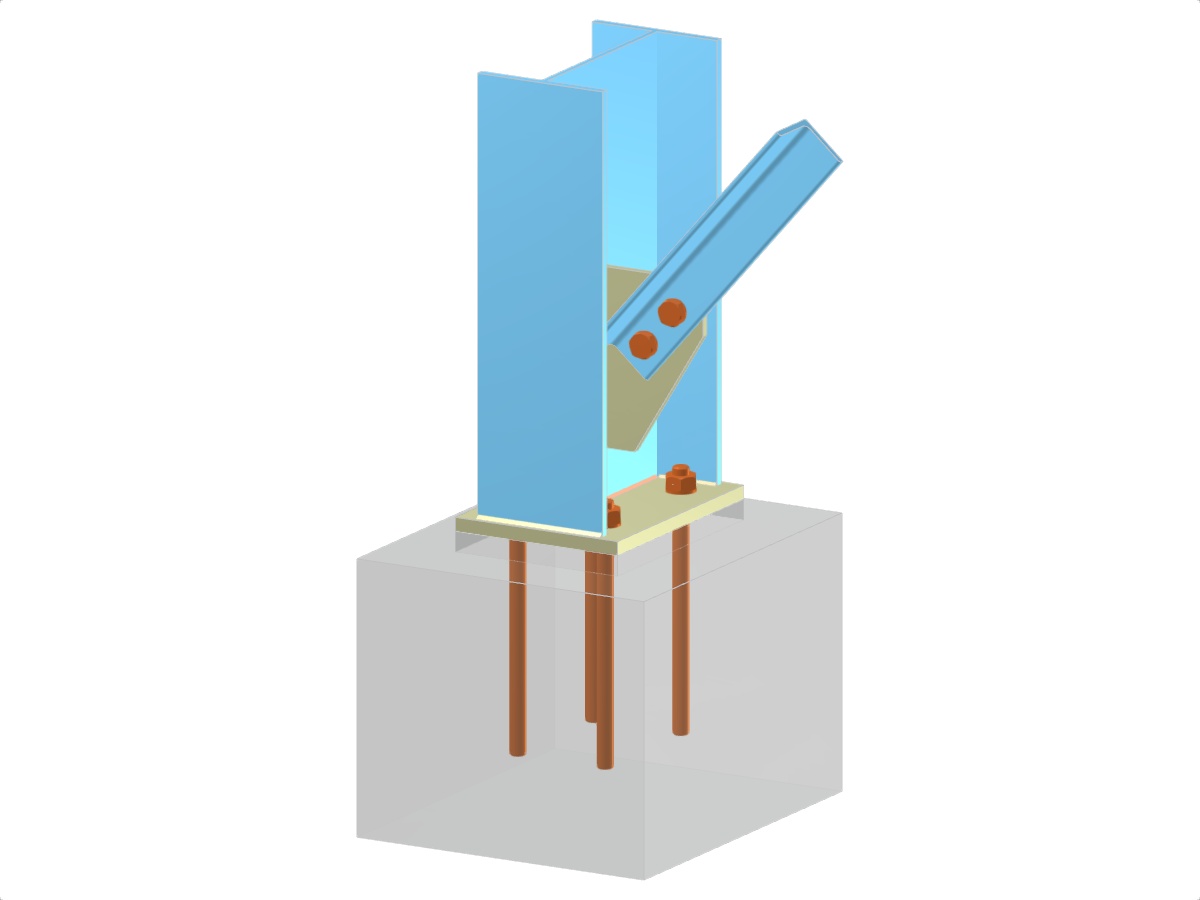

Column base with gusset plate and bolted diagonal connection, including I-profile column, L-profile diagonal to column web, and anchoring.
This illustration shows a column base featuring a gusset plate and a bolted diagonal connection. The column is depicted with an I-profile, while the diagonal is represented by an L-profile interfacing with the column web. A base plate supports the structure, and anchoring ensures its stability.
3D Model
Specifications
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.067 tons |
| Dimensions (Metric) | 0,700 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 2.3 x 3.28 x 0 feet |
