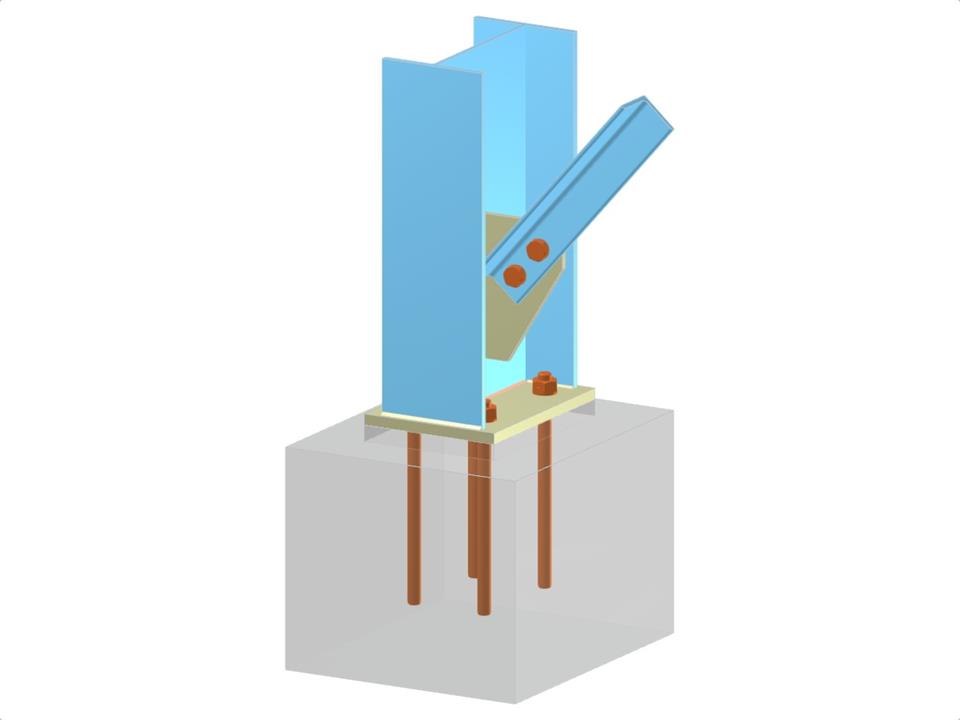

This model features a structural column base setup, integrating an I-profile column with a base plate and gusset plate. The diagonal elements utilize L-profiles connected by bolts to gusset plate welded to the column web, ensuring stability. Anchoring details are included for comprehensive structural support.
Column Base with Gusset Plate and Bolted Diagonal Connection
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.067 tons |
| Dimensions (Metric) | 0,700 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 2.3 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
