Definition of Shear Lug

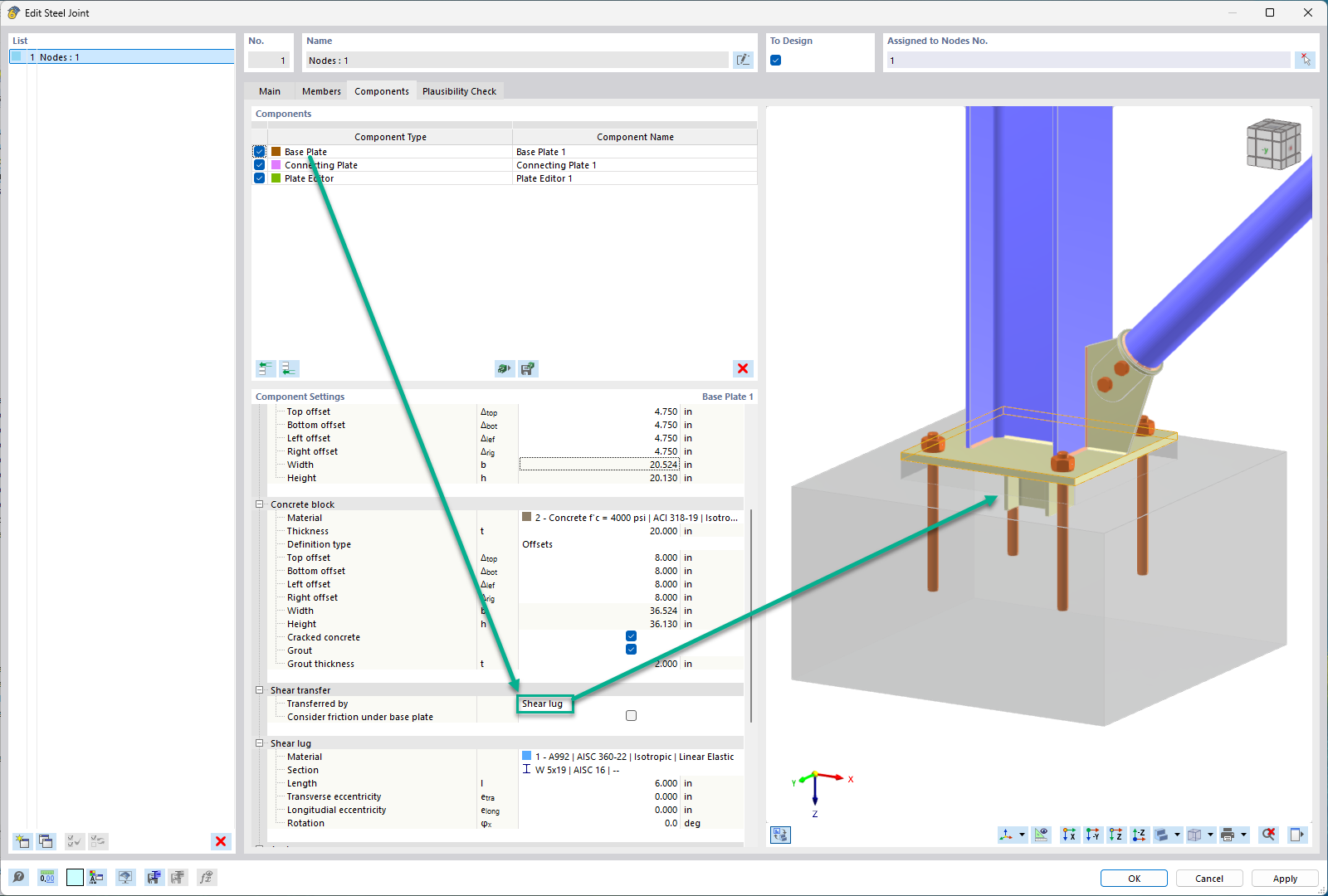

Shear transfer from a base plate to a concrete block displayed using shear lugs.

The image shows the connection between a base plate and a concrete block using shear lugs. Shear transfer is achieved through the mechanical action of the lugs in the concrete. Specific details and placements of the shear lugs are shown. The display illustrates the technical solution for ensuring the stability of the structure.
