Structural Details of Steel Truss Girder
Detailed view of a steel truss with typical connections and bracing.

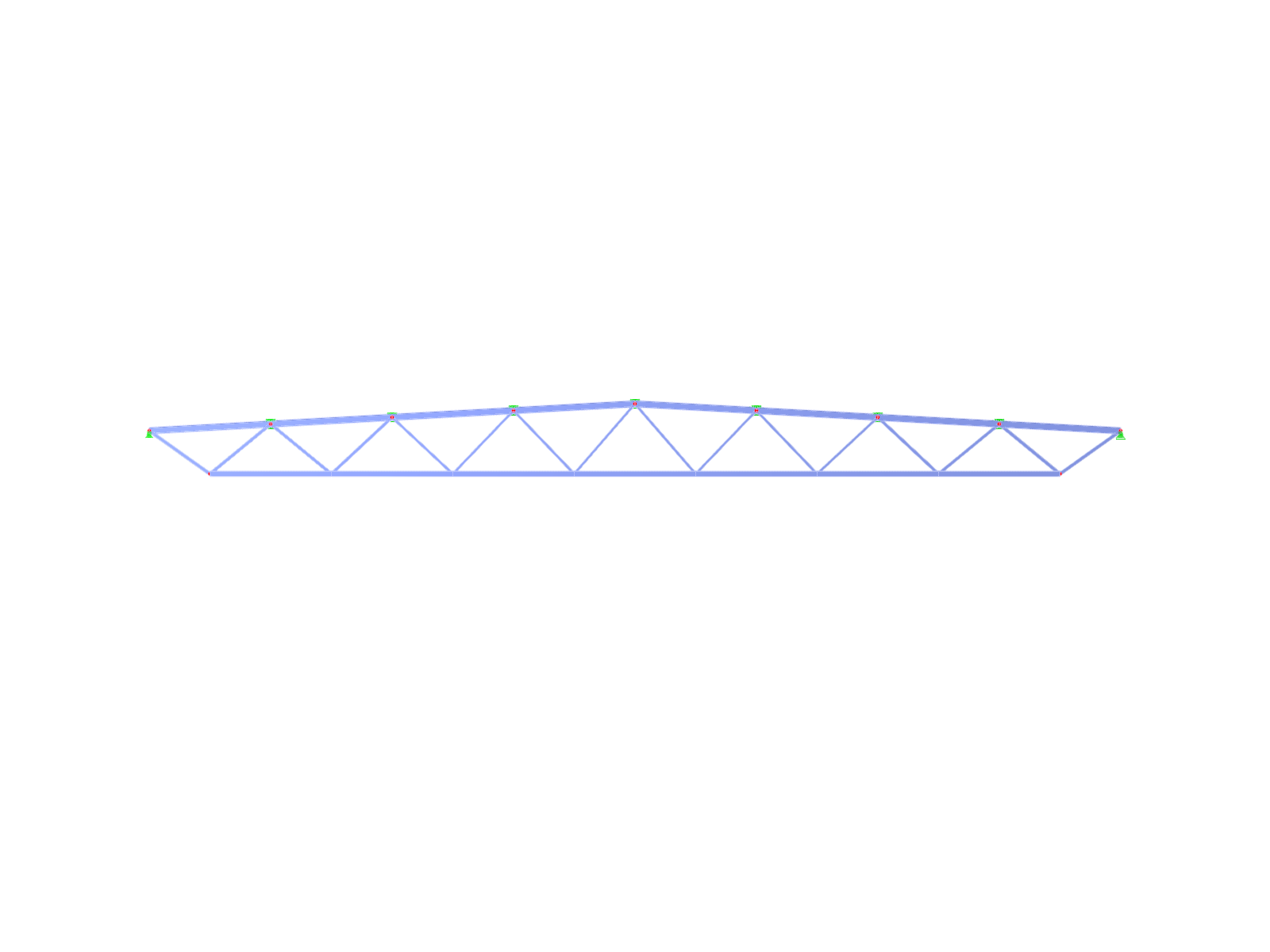

The image shows a steel truss with different connection details and bracing. Typical structural components and nodal points can be seen, which are characteristic features of truss structures in steel structures. Such structures provide high load-bearing capacity with comparatively low weight. The use of such truss elements is important in large spans and hall structures.
Used in
3D Model
Specifications
| Number of Nodes | 17 |
| Number of Lines | 31 |
| Number of Members | 31 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 9 |
| Number of Result Combinations | 0 |
| Total Weight | 4.469 t |
| Dimensions (Metric) | 36.000 x 2.600 x 0.000 m |
| Dimensions (Imperial) | 118.11 x 8.53 x 0 feet |
