A steel truss is a supporting structure consisting of several members and providing the advantage of high load-bearing capacity and low material consumption. Ideal for use in hall structures or large spans, the truss combines the efficiency of steel with its low self-weight.
Model Used in
- Most Frequently Asked Questions Answered by Dlubal Support Team | May 2025
- Most Frequently Asked Questions Answered by Dlubal Support Team | August 2025
- Webinar | Most Frequently Asked Questions Answered by Dlubal Support Team | May 2025
- Webinar | Most Frequently Asked Questions Answered by Dlubal Support Team | August 2025

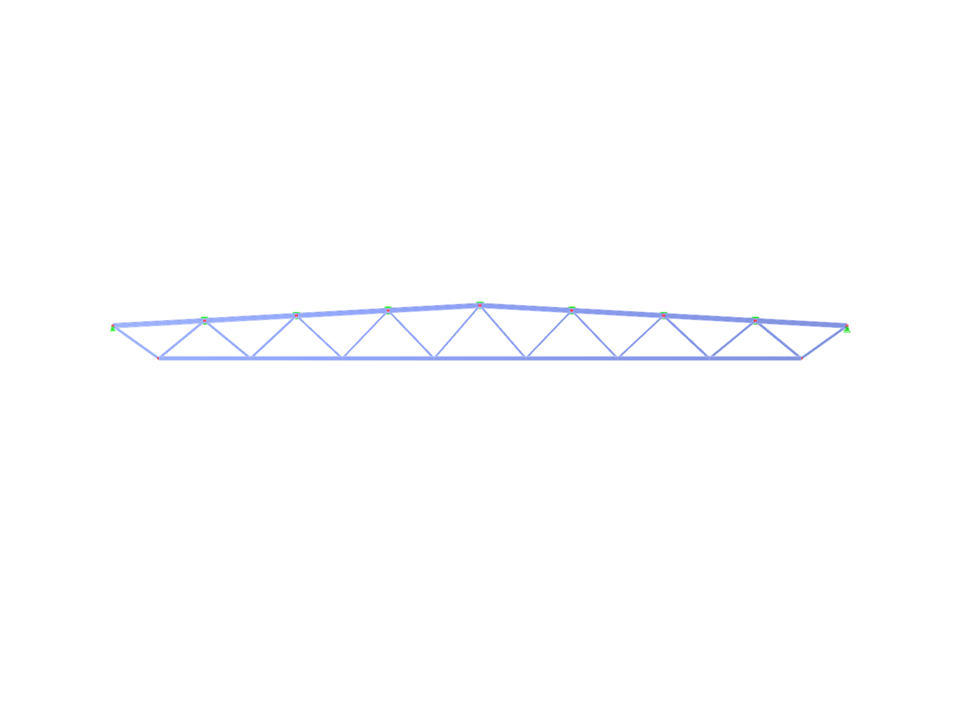

Steel Truss Girder
| Number of Nodes | 17 |
| Number of Lines | 31 |
| Number of Members | 31 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 9 |
| Number of Result Combinations | 0 |
| Total Weight | 4.469 t |
| Dimensions (Metric) | 36.000 x 2.600 x 0.000 m |
| Dimensions (Imperial) | 118.11 x 8.53 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
