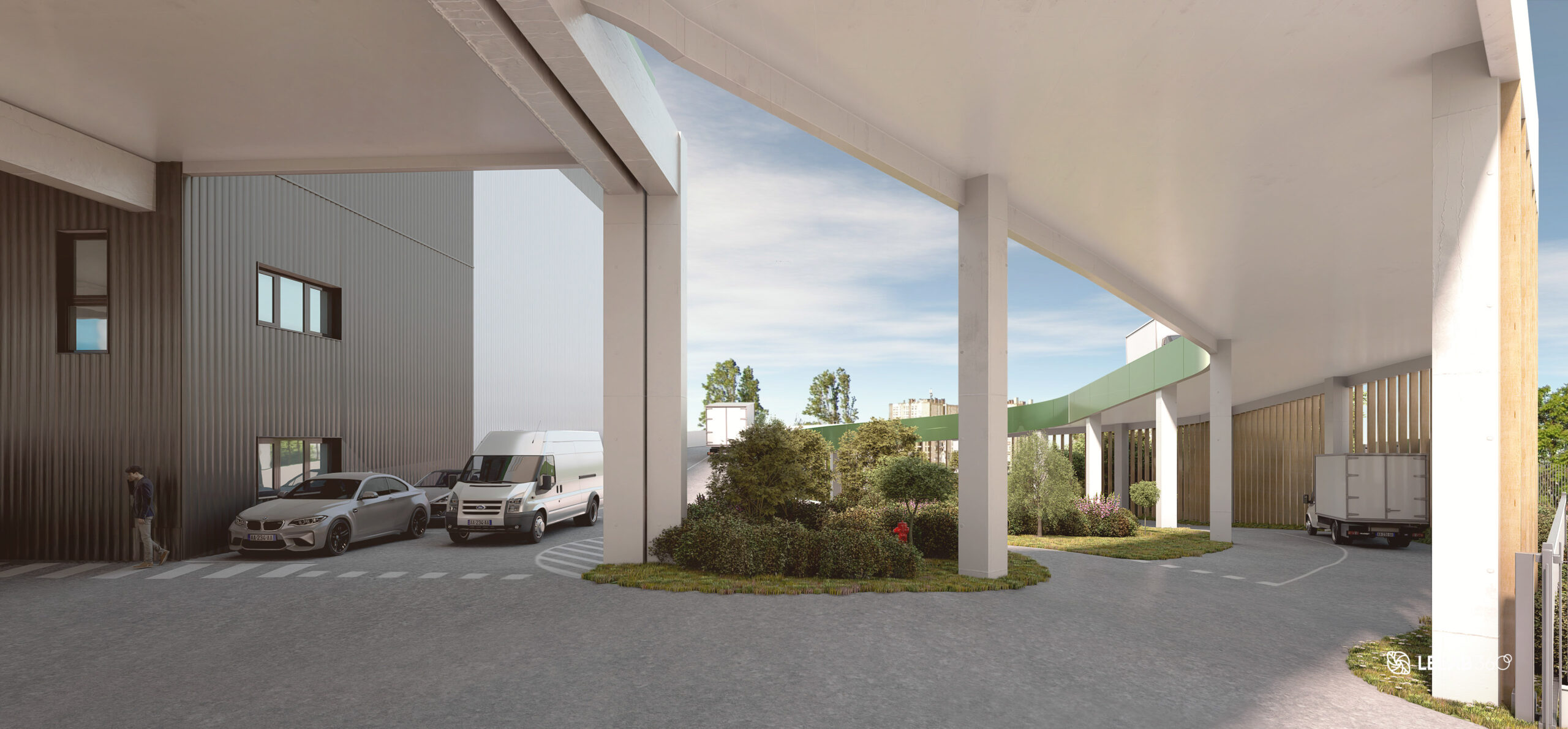

Bottom View of Traffic Ramp in 3D Rendering | © AEW - STONEHEDGE
Bottom view of the traffic ramp in 3D rendering | © AEW - STONEHEDGE
3D Model
Specifications
| Number of Nodes | 57 |
| Number of Members | 93 |
| Number of Load Cases | 9 |
| Number of Load Combinations | 9 |
| Number of Result Combinations | 3 |
| Total Weight | 345.631 t |
| Dimensions (Metric) | 30.962 x 62.076 x 13.730 m |
| Dimensions (Imperial) | 101.58 x 203.66 x 45.05 feet |
| Program Version | 8.33.01 |
