RFEM Model of Kuhdamm Bridge in Wustermark

Structural model of the Kuhdamm bridge in Wustermark with structural details displayed in RFEM.

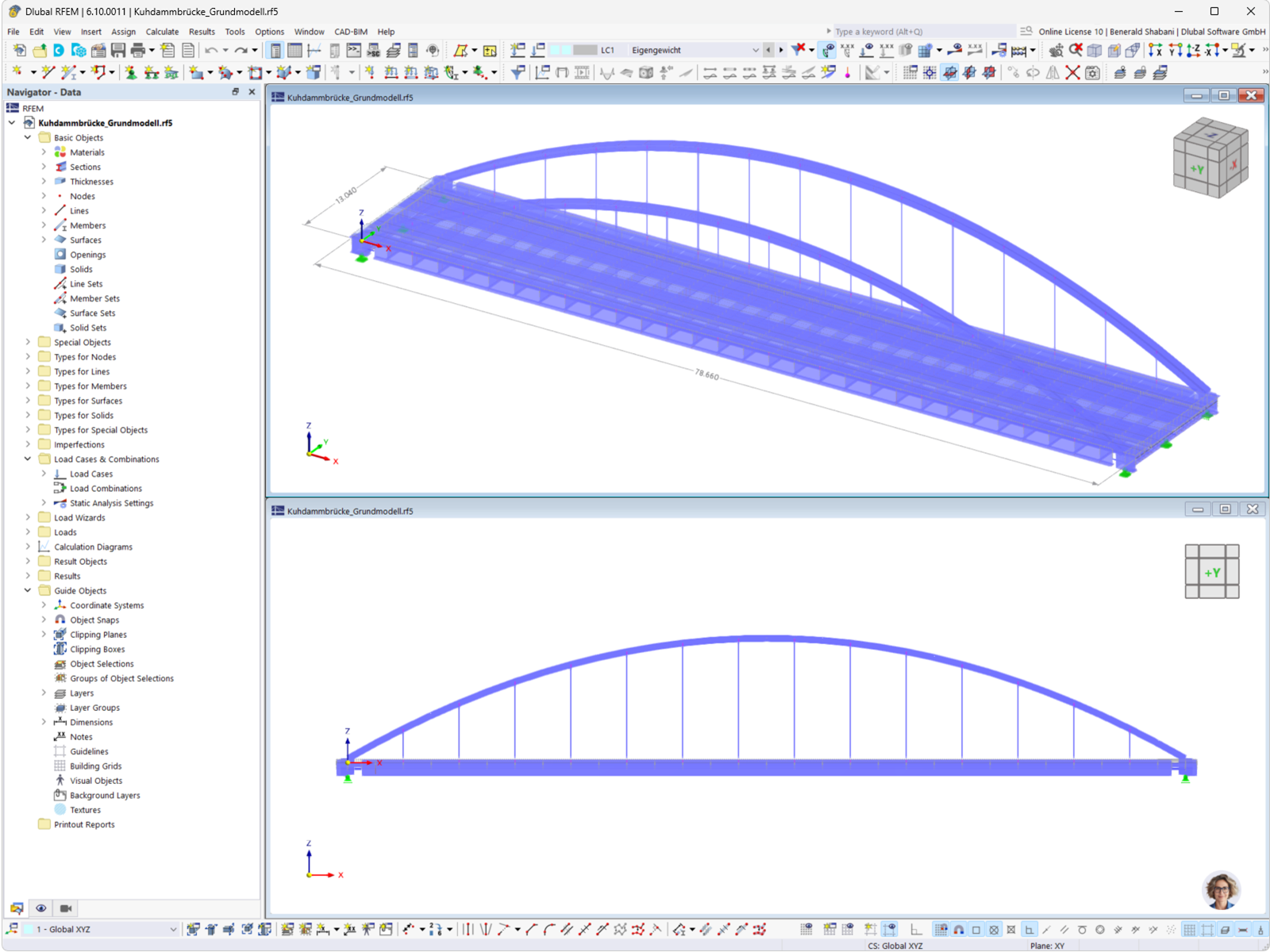

The image shows a detailed RFEM model of the Kuhdamm bridge in Wustermark, created by VIC Planen und beraten GmbH. The structural components and the supporting structure of the bridge are displayed to illustrate the technical details of its design. The display is ideal for analyzing and checking the structural integrity. Photo by © VIC Planen und beraten GmbH.
Used in
3D Model
No Download Possible Customer Project / View Only
More About 3D Model
Specifications
Number of Nodes 1019
Number of Lines 1880
Number of Members 1572
Number of Surfaces 9
Number of Solids 0
Number of Load Cases 64
Number of Load Combinations 0
Number of Result Combinations 0
Total Weight 569.860 tons
Dimensions (Metric) 78.660 x 12.500 x 13.040 m
Dimensions (Imperial) 258.07 x 41.01 x 42.78 feet
