RFEM Model of Timber Roof Structure

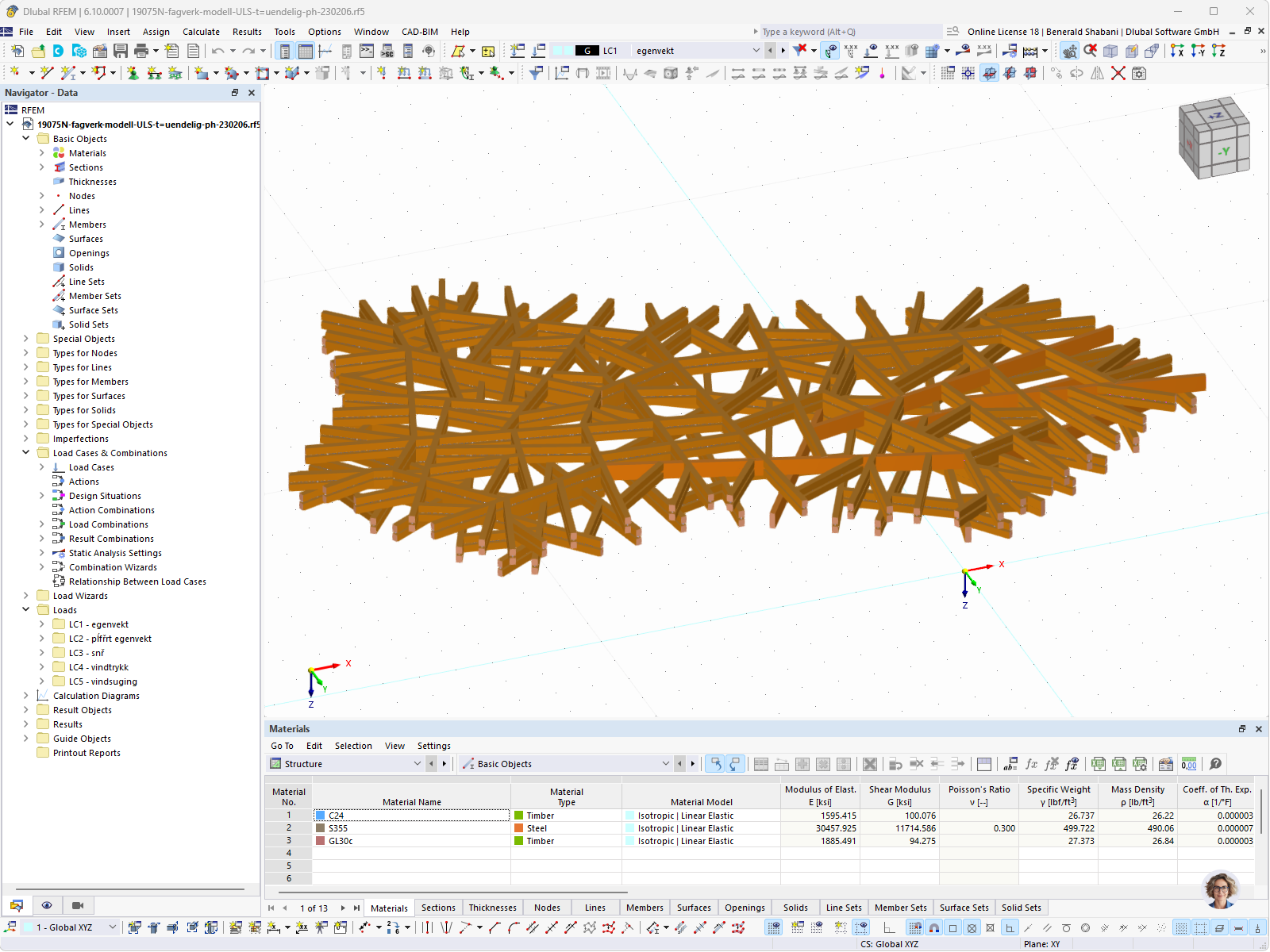

Roof structure of a service building made of timber. Detailed view of the supporting elements.
The structure shows a carefully designed roof structure for a service building made entirely of timber. The geometry of the supporting elements demonstrates innovative design in timber structures. Photo by © Bohllinger+Grohmann.
3D Model
Specifications
| Number of Nodes | 26326 |
| Number of Lines | 10287 |
| Number of Members | 10229 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 13 |
| Number of Result Combinations | 3 |
| Total Weight | 17.339 t |
| Dimensions (Metric) | 23.833 x 16.134 x 0.976 m |
| Dimensions (Imperial) | 78.19 x 52.93 x 3.2 feet |
| Program Version | 5.37.01 |
