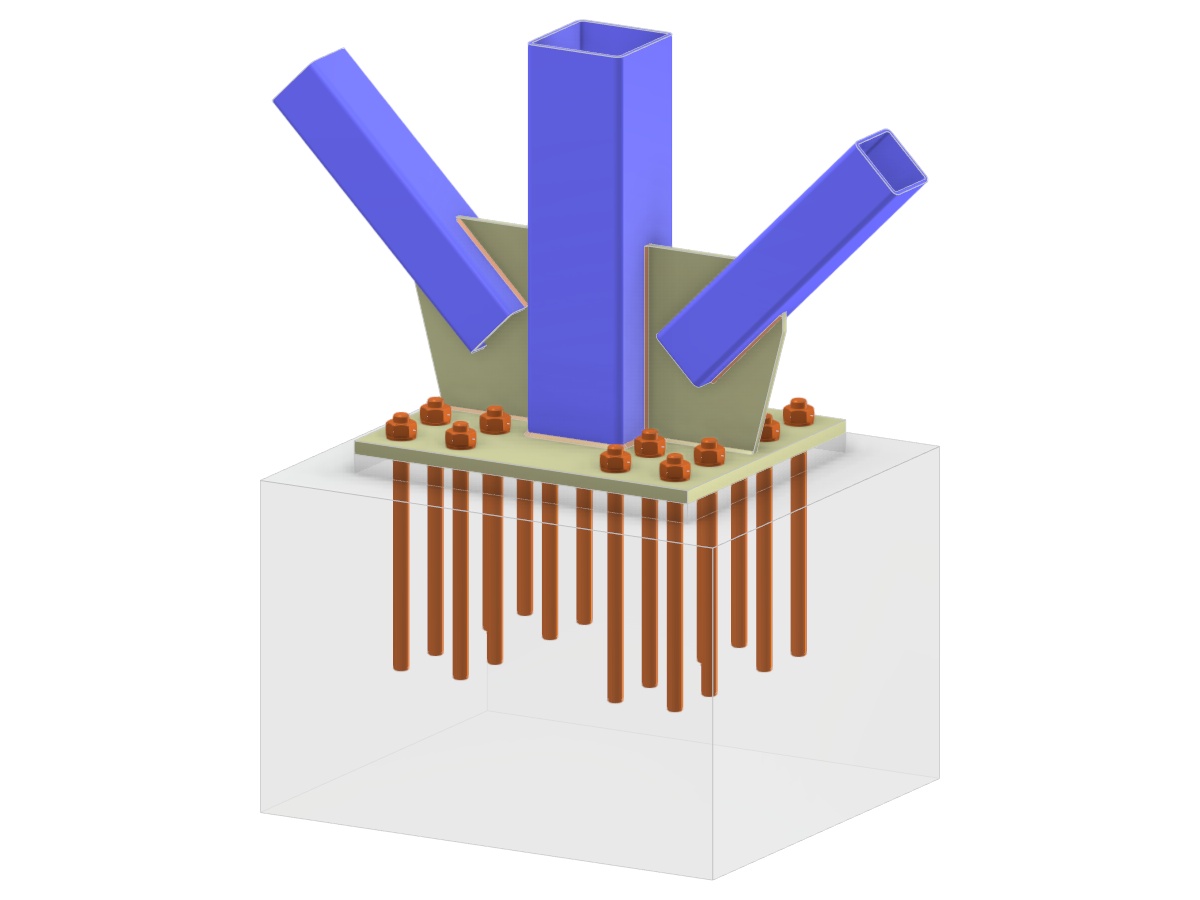

Model 005804 | Column Base and Two Diagonals of Vertical Bracing
The structural design features a column base incorporating a rectangular hollow section (RHS) column. The configuration includes two RHS diagonals connected via welding to a robust base plate. A gusset plate is employed to enhance the welded diagonal connection, providing additional stability. Anchoring elements are present to secure the assembly, ensuring its structural integrity.
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.069 tons |
| Dimensions (Metric) | 2.000 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 6.56 x 3.28 x 0 feet |
