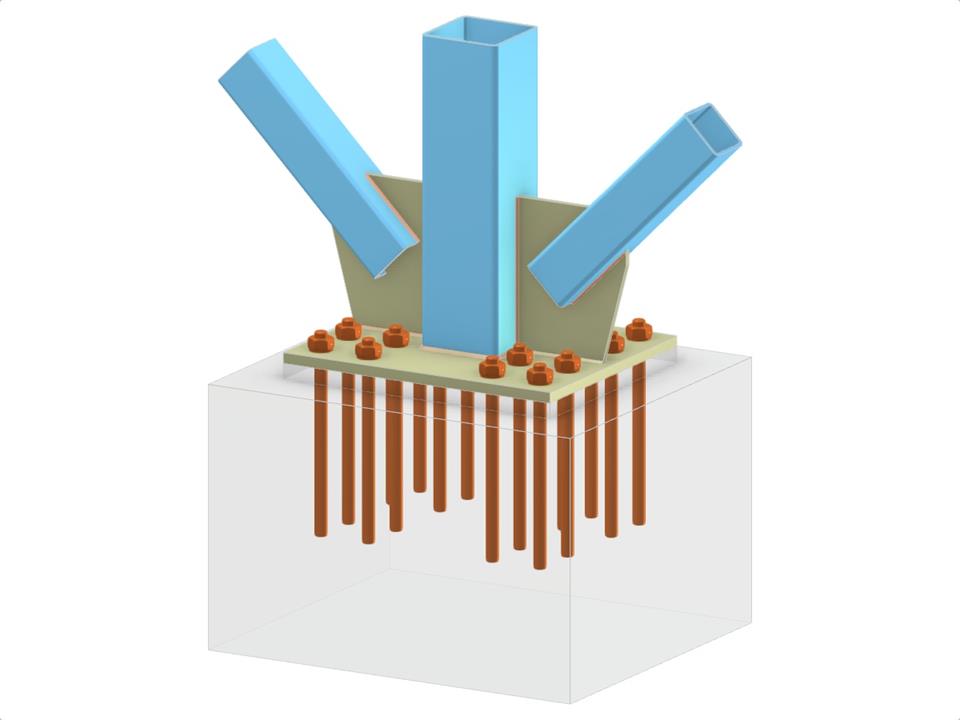

This model showcases a detailed construction of a column base featuring an RHS (Rectangular Hollow Section) column and two RHS diagonals. It includes a base plate and gusset plate, illustrating a welded diagonal connection. The anchoring method is also highlighted, providing comprehensive understanding of the structural integration.
Column Base and Two Diagonals of Vertical Bracing
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.069 tons |
| Dimensions (Metric) | 2.000 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 6.56 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
