Model 005811 | Column Base with Two Diagonals of Vertical Bracing

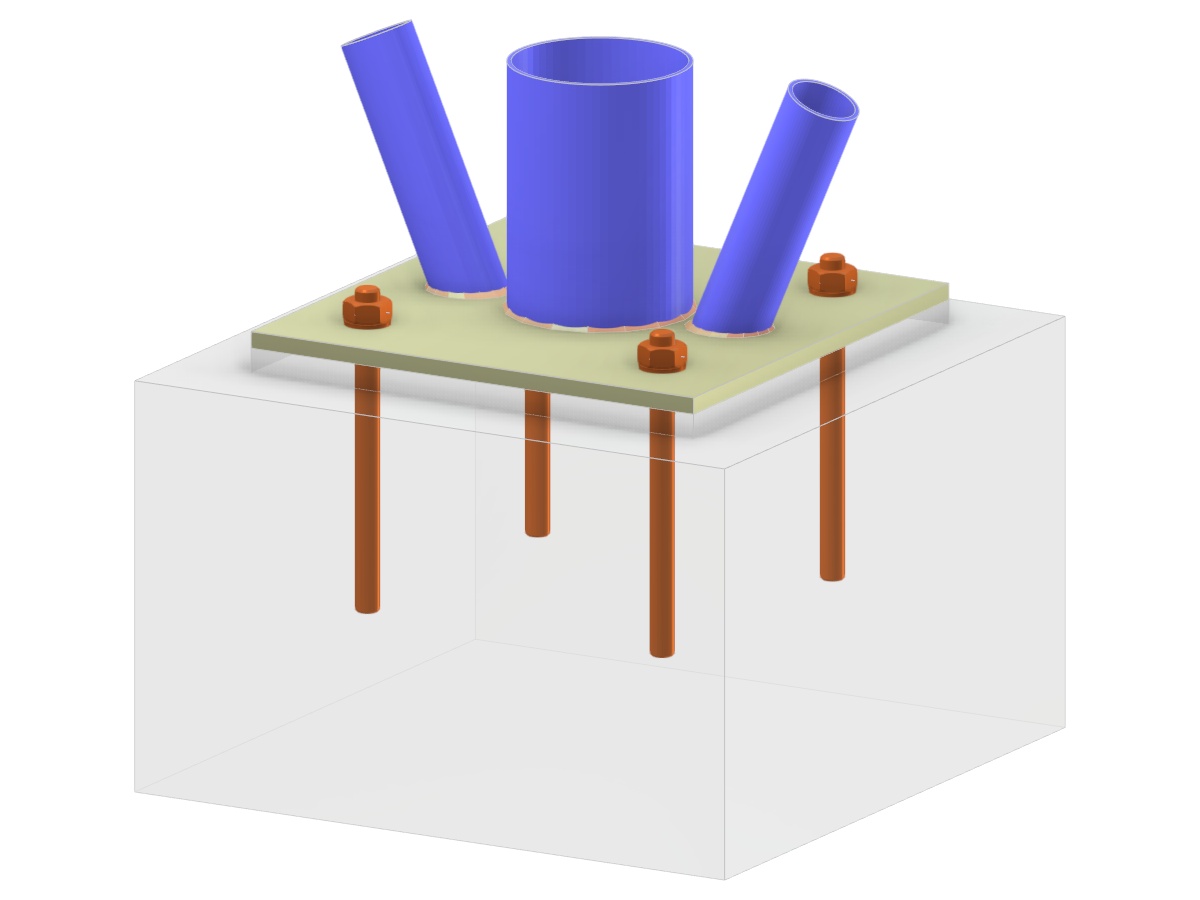

The image shows the base of a structural steel column designed with a circular hollow section (CHS). Two CHS diagonals are welded to support the column at the base plate. The base plate is anchored to the foundation, providing stability for the structure.
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.050 tons |
| Dimensions (Metric) | 1,200 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 3.94 x 3.28 x 0 feet |
