Moving Loads for Lane of Bridge

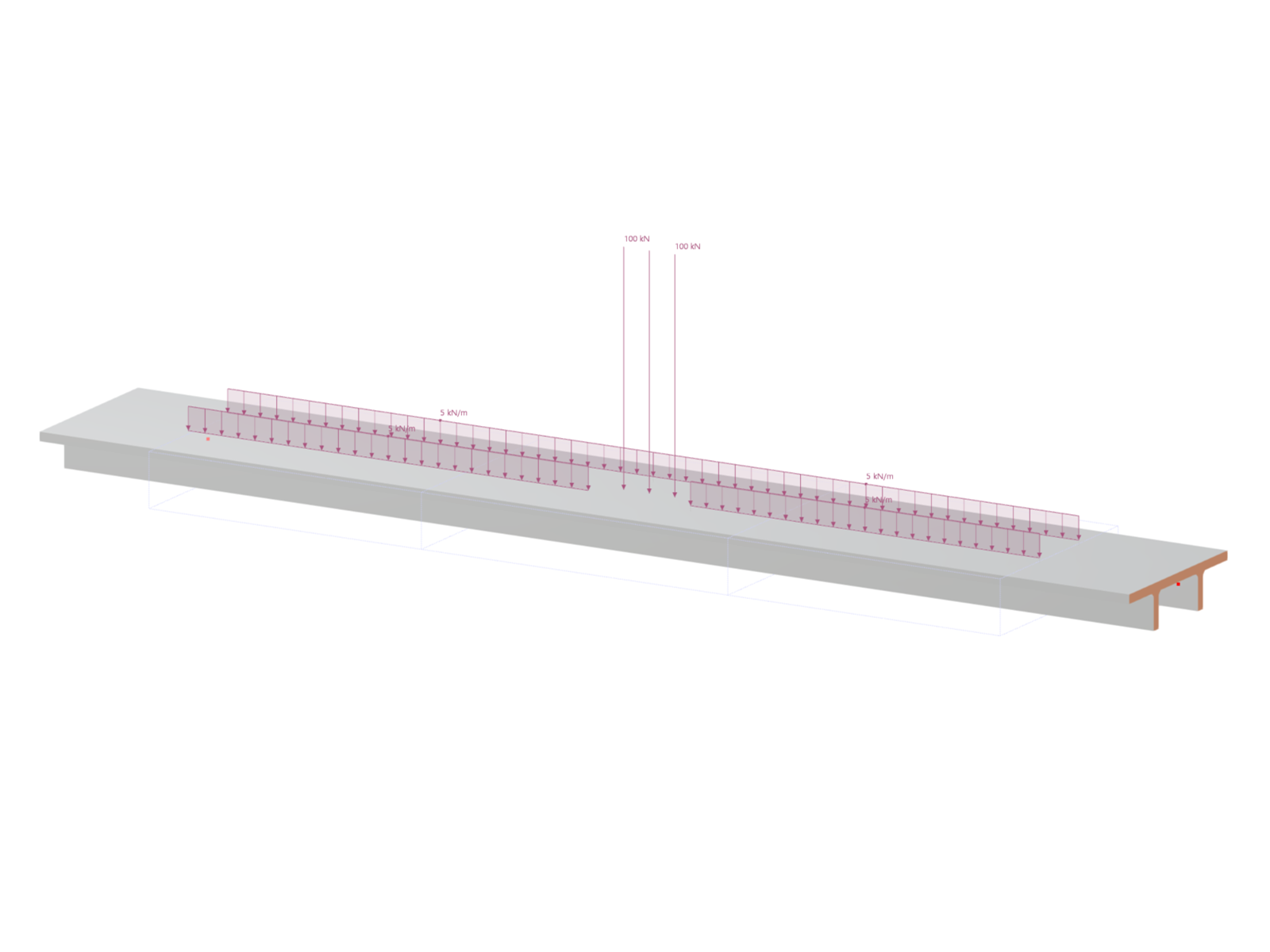

Truck with 30 t total load on bridge, traffic area load on two lanes; load model application.
The generation of moving loads is shown using a Load Wizard. A truck with a total load of 30 t is on a 50 m long bridge. At the same time, a traffic area load corresponding to a uniform load of 5 kN/m is applied to two lanes. The uniform load is not applied in the area of the truck. This image efficiently illustrates the load distribution and the use of load models.
Used in
3D Model
Specifications
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 56 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1132,800 t |
| Dimensions (Metric) | 64,000 x 0,000 x 0,000 m |
| Dimensions (Imperial) | 209.97 x 0 x 0 feet |
