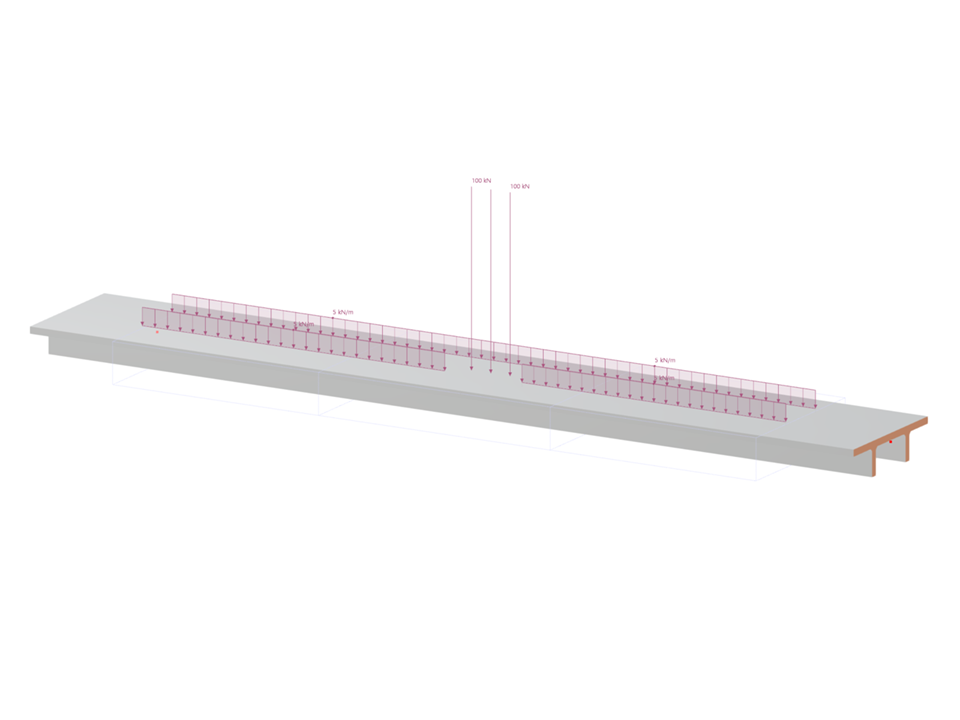

In this example, a 50 m long bridge is modeled, which is driven over by a 30 t truck. In addition to the truck, a surface load of 5 kN/m acts on both lanes, but without any influence in the immediate vicinity of the truck.
The Moving Load wizard allows you to generate individual load positions from load models and also simulate the truck load driving onto and off the bridge. This procedure allows for the precise analysis of load distributions and their effects on the bridge structure.
Moving Loads on Bridge
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 56 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1132,800 t |
| Dimensions (Metric) | 64,000 x 0,000 x 0,000 m |
| Dimensions (Imperial) | 209.97 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
