Single-Story Masonry Bathroom with Concrete Slab

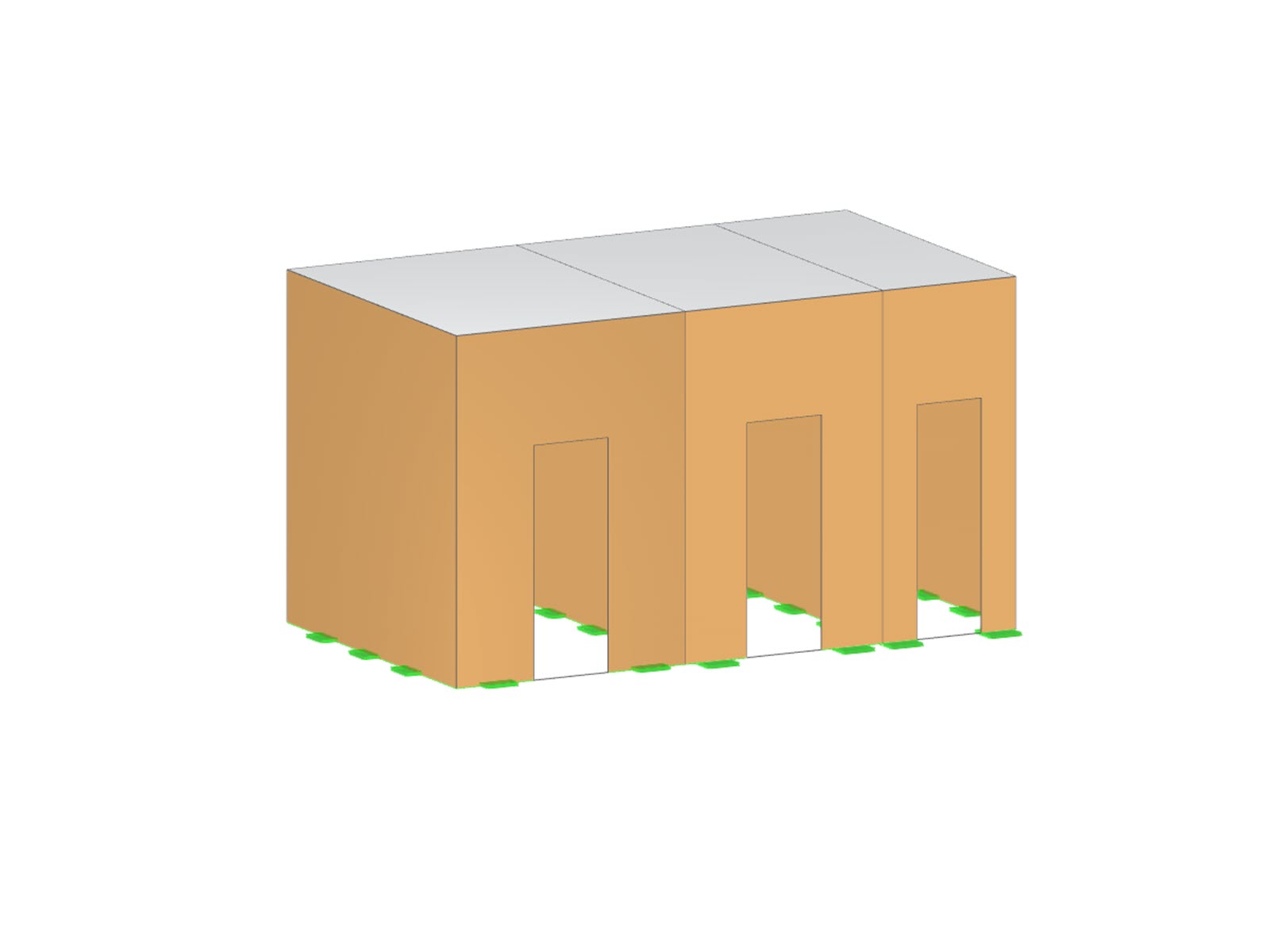

RFEM 6 model of a single-story, nonlinear masonry wall with door openings and concrete slab.
The image shows a model in RFEM 6 of a single-story masonry wall analyzed under nonlinear conditions. The wall is 5.25 meters long, 3.05 meters wide, and 3.00 meters high with a thickness of 230 mm. It contains three door openings, each 0.70 m wide and 2.00 m high. A 120 mm thick concrete slab made of concrete C25/30 is placed on top of the wall.
Used in
3D Model
Specifications
| Number of Nodes | 28 |
| Number of Lines | 43 |
| Number of Members | 0 |
| Number of Surfaces | 11 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 0 |
| Total Weight | 15.817 t |
| Dimensions (Metric) | 5.250 x 3.000 x 3.050 m |
| Dimensions (Imperial) | 17.22 x 9.84 x 10.01 feet |
