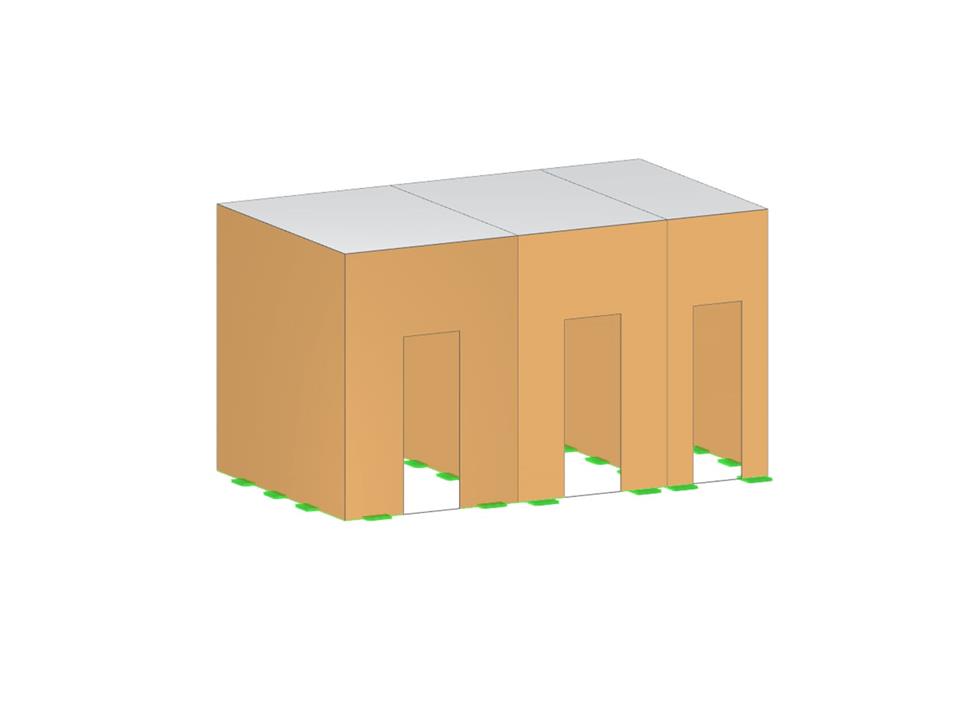

This model in RFEM 6 visualizes a nonlinear structural analysis of a single-story wall made of unreinforced masonry with a length of 5.25 m, a width of 3.05 m, a height of 3.00 m, and a thickness of 230 mm. The wall includes three door openings and supports a 120 mm thick concrete slab made of C25/30. The goal is to analyze the response under lateral loads.
Masonry Bathroom Model
| Number of Nodes | 28 |
| Number of Lines | 43 |
| Number of Members | 0 |
| Number of Surfaces | 11 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 0 |
| Total Weight | 15.817 t |
| Dimensions (Metric) | 5.250 x 3.000 x 3.050 m |
| Dimensions (Imperial) | 17.22 x 9.84 x 10.01 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
