RFEM Model of Integral Bridge in Ludwigslust
Integral bridge as an RFEM model, shown in a structural analysis view.

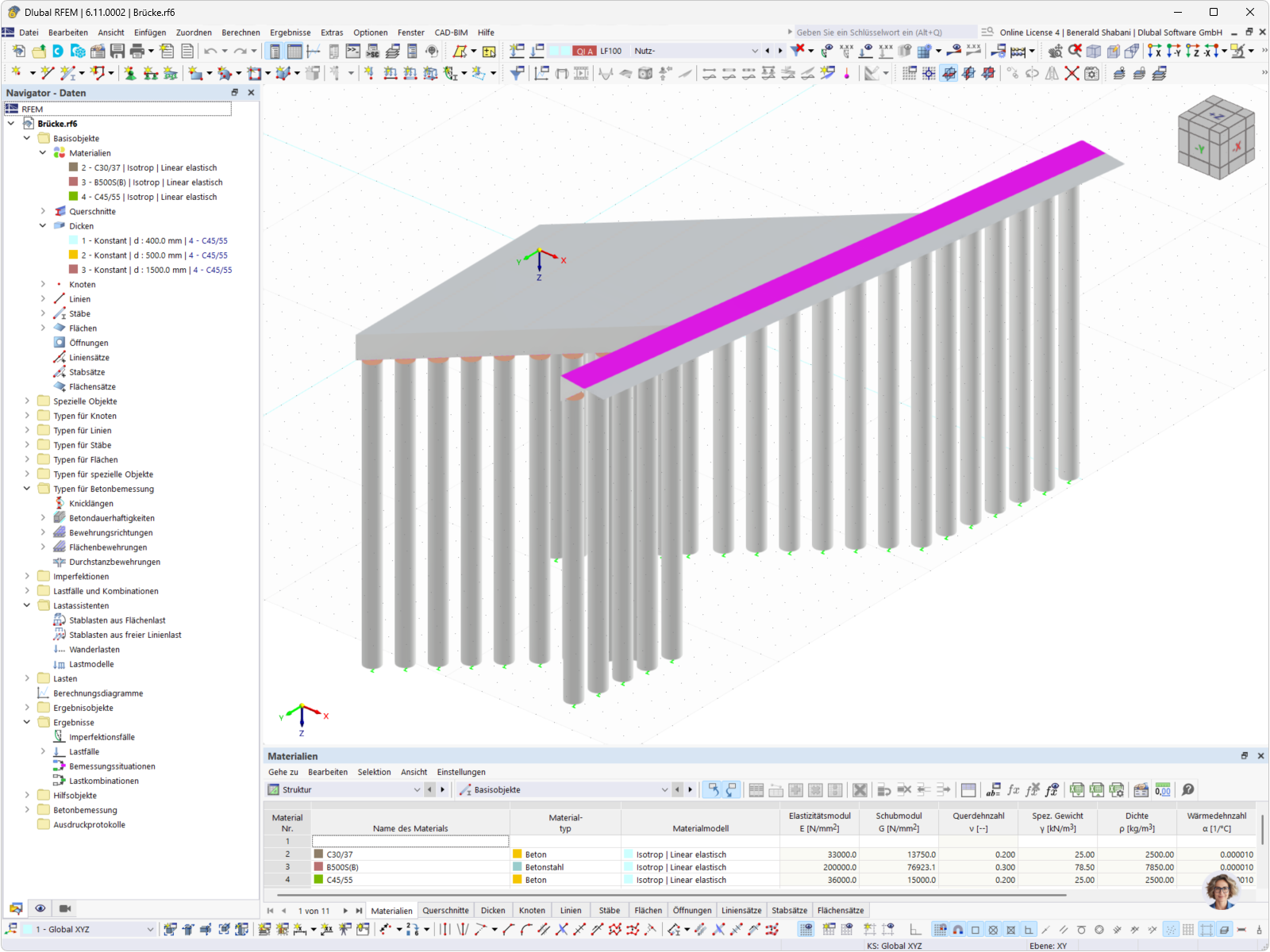

The image shows an RFEM model of the integral bridge in Ludwigslust. The display includes a structural analysis view that highlights details of the bridge structure, including load types and supports. This model illustrates the use of Dlubal software for simulating and optimizing structural designs. Photo by © Obermeyer Holding GmbH.
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 482 |
| Number of Lines | 488 |
| Number of Members | 388 |
| Number of Surfaces | 17 |
| Number of Solids | 0 |
| Number of Load Cases | 49 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1192.459 t |
| Dimensions (Metric) | 15.716 x 16.150 x 32.316 m |
| Dimensions (Imperial) | 51.56 x 52.99 x 106.02 feet |
