FAQ 5725 | Location of Result Beam with No Effect on Axial Force

Location of a result beam affecting internal forces

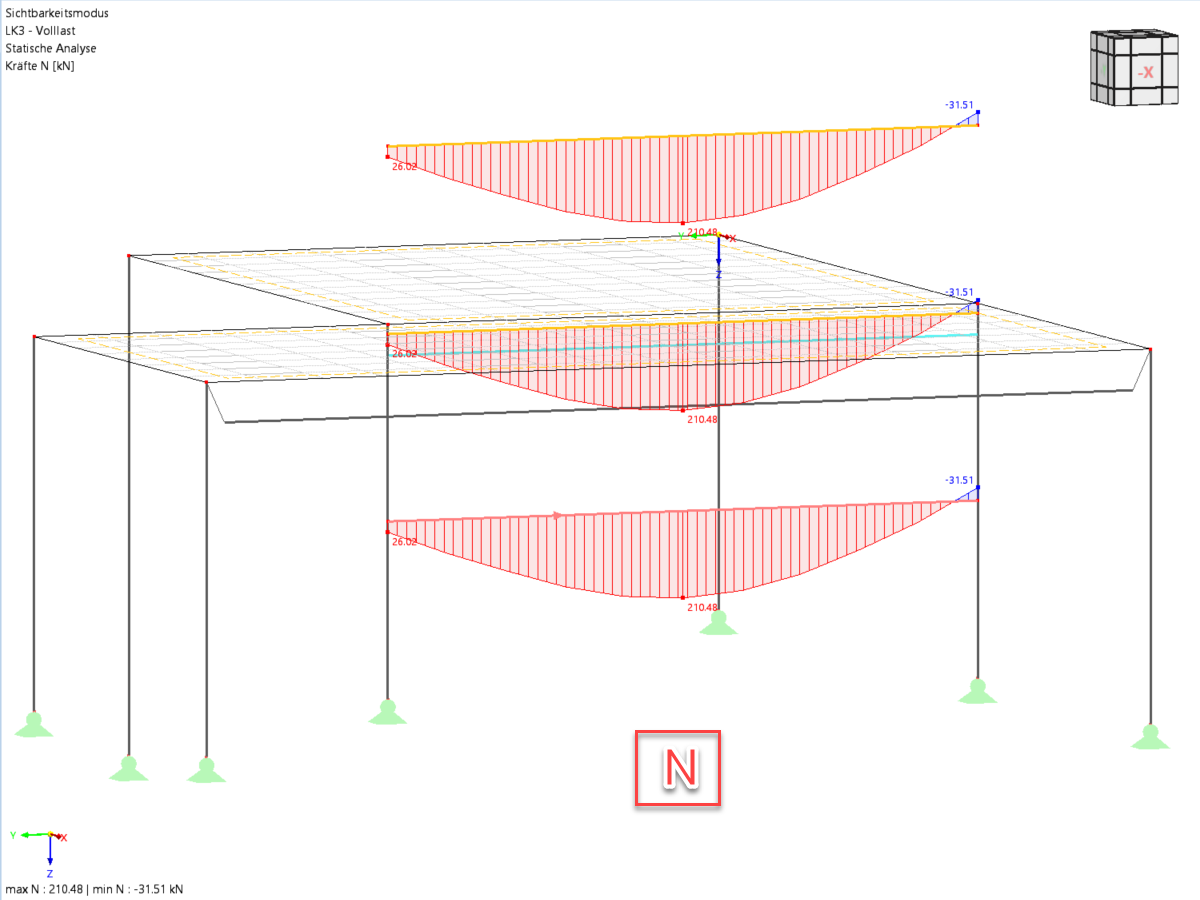

The image shows the effect that the axial force in a structural model remains independent of the location of the result beam. The analysis illustrates that the positioning of the member within a model has no effect on the result of the axial force calculation, which is relevant for structural evaluation.
