Pneumatic Membrane Modeling in Result Navigator

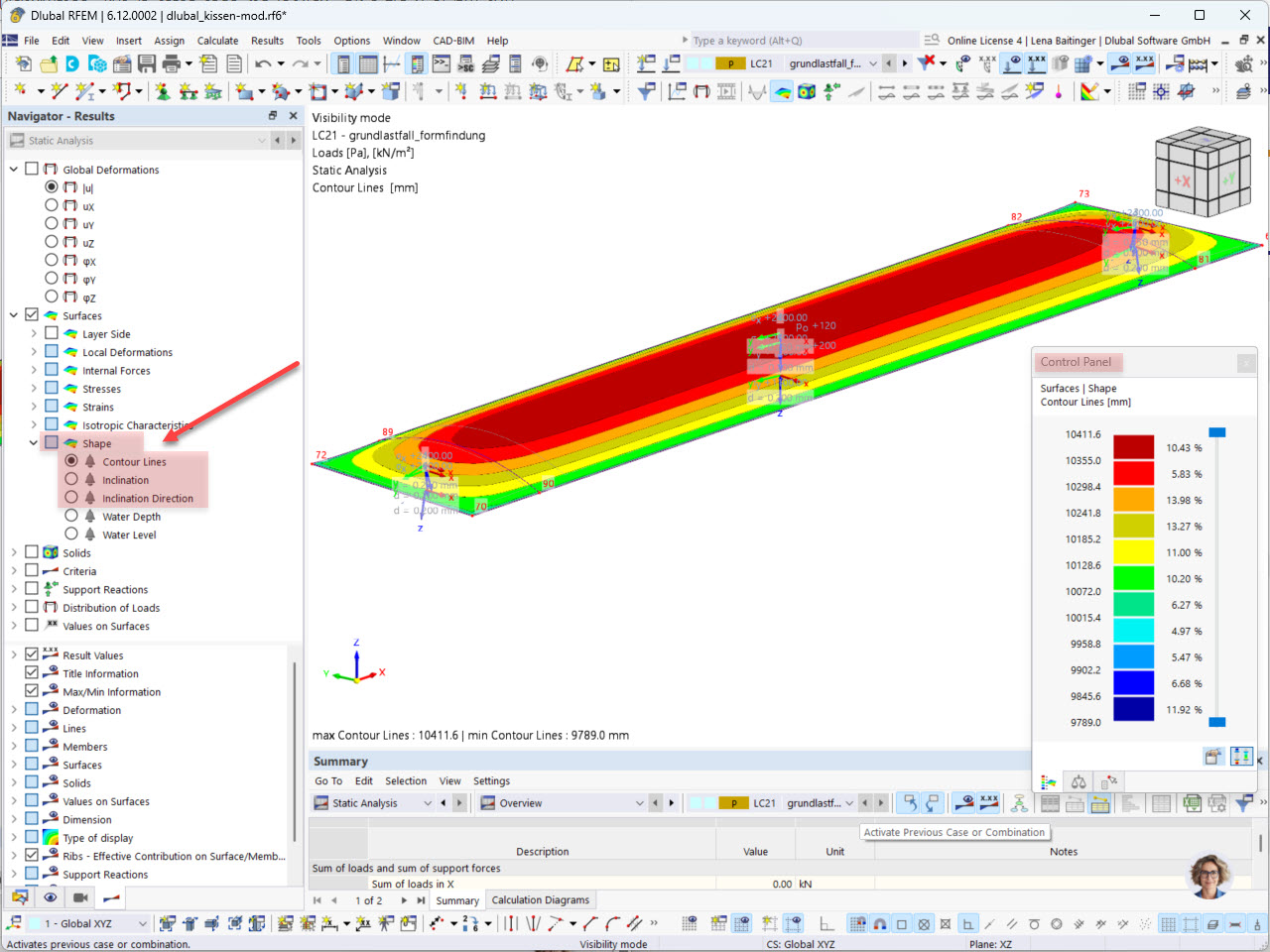

Pneumatic diaphragm model with marked result navigator and control panel for precise model adjustments.

The image shows a pneumatic membrane model displayed in the results navigator. The shape selection options in the navigator are highlighted in red and marked with an arrow. The control panel is also highlighted in red, which notes the adjustment and control of the model in the Dlubal software.
