KB 2030 | Mesh Convergence Safety Factor

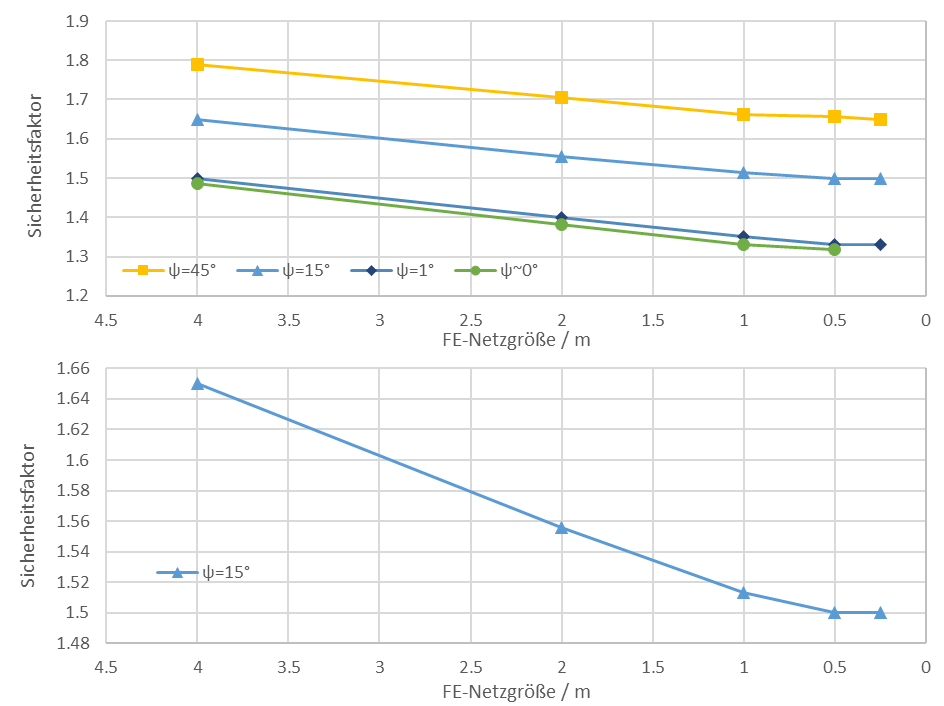

The image shows the relationship between the safety factor determined using Phi-C reduction and the FE mesh size for different dilatancy angles, using the example of a uniform slope.
3D Model
Specifications
| Number of Nodes | 21 |
| Number of Lines | 32 |
| Number of Members | 0 |
| Number of Surfaces | 15 |
| Number of Solids | 2 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 600.000 t |
| Dimensions (Metric) | 40.000 x 20.000 x 0.500 m |
| Dimensions (Imperial) | 131.23 x 65.62 x 1.64 feet |
