KB 1900 | Settlement Comparison

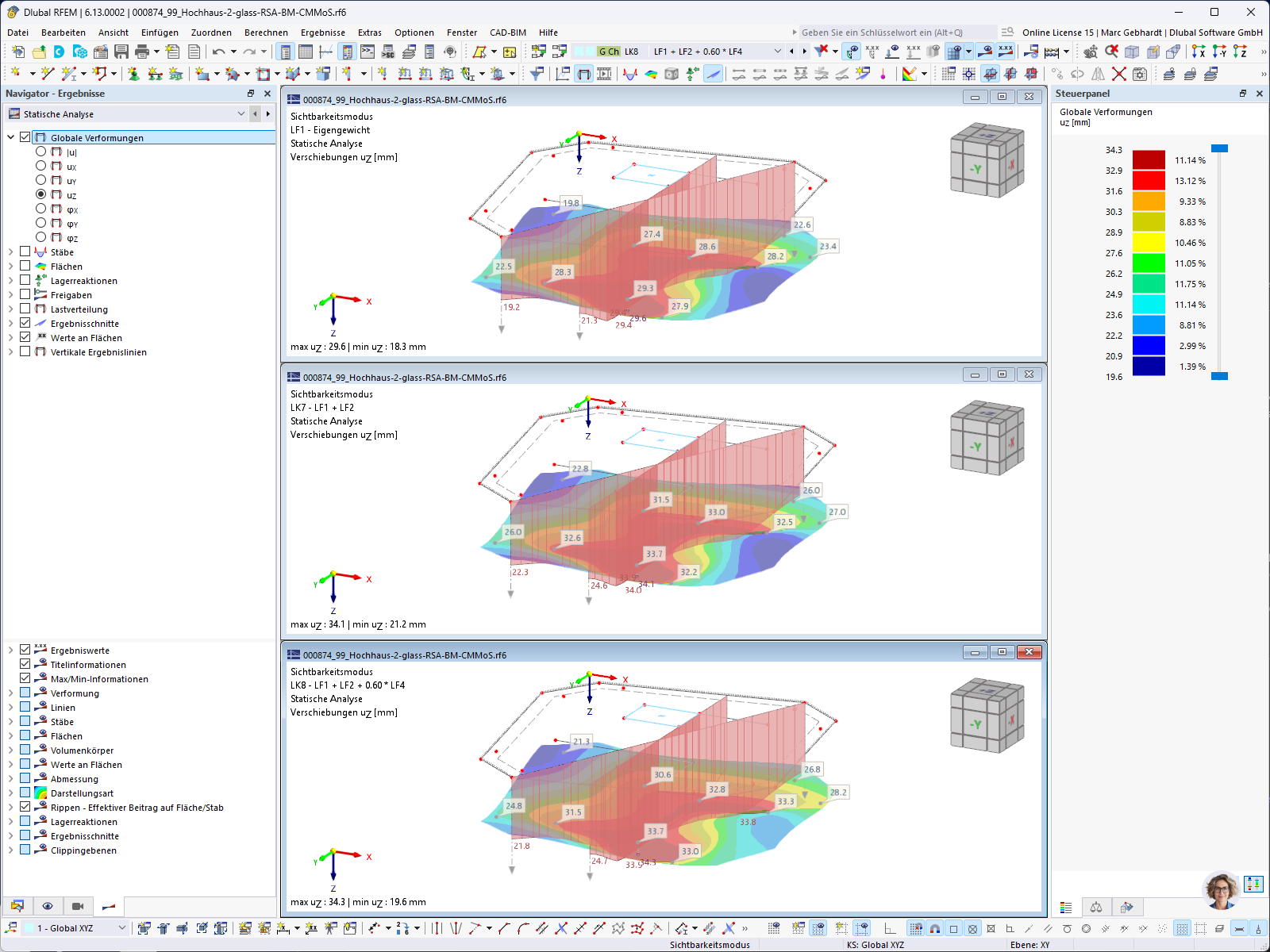

The image shows a comparison of the settlement of the foundation slab under its self-weight (top) and under the characteristic load combination with traffic load and accompanying wind action (bottom).
3D Model
Specifications
| Number of Nodes | 849 |
| Number of Lines | 1063 |
| Number of Members | 300 |
| Number of Surfaces | 362 |
| Number of Solids | 0 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 16 |
| Number of Result Combinations | 1 |
| Total Weight | 10049.760 t |
| Dimensions (Metric) | 80.000 x 70.000 x 80.000 m |
| Dimensions (Imperial) | 262.47 x 229.66 x 262.47 feet |
