KB 1967 | Total Deformation Due to Torsional Wind Load
KB 1967 | Total deformation due to torsional wind load

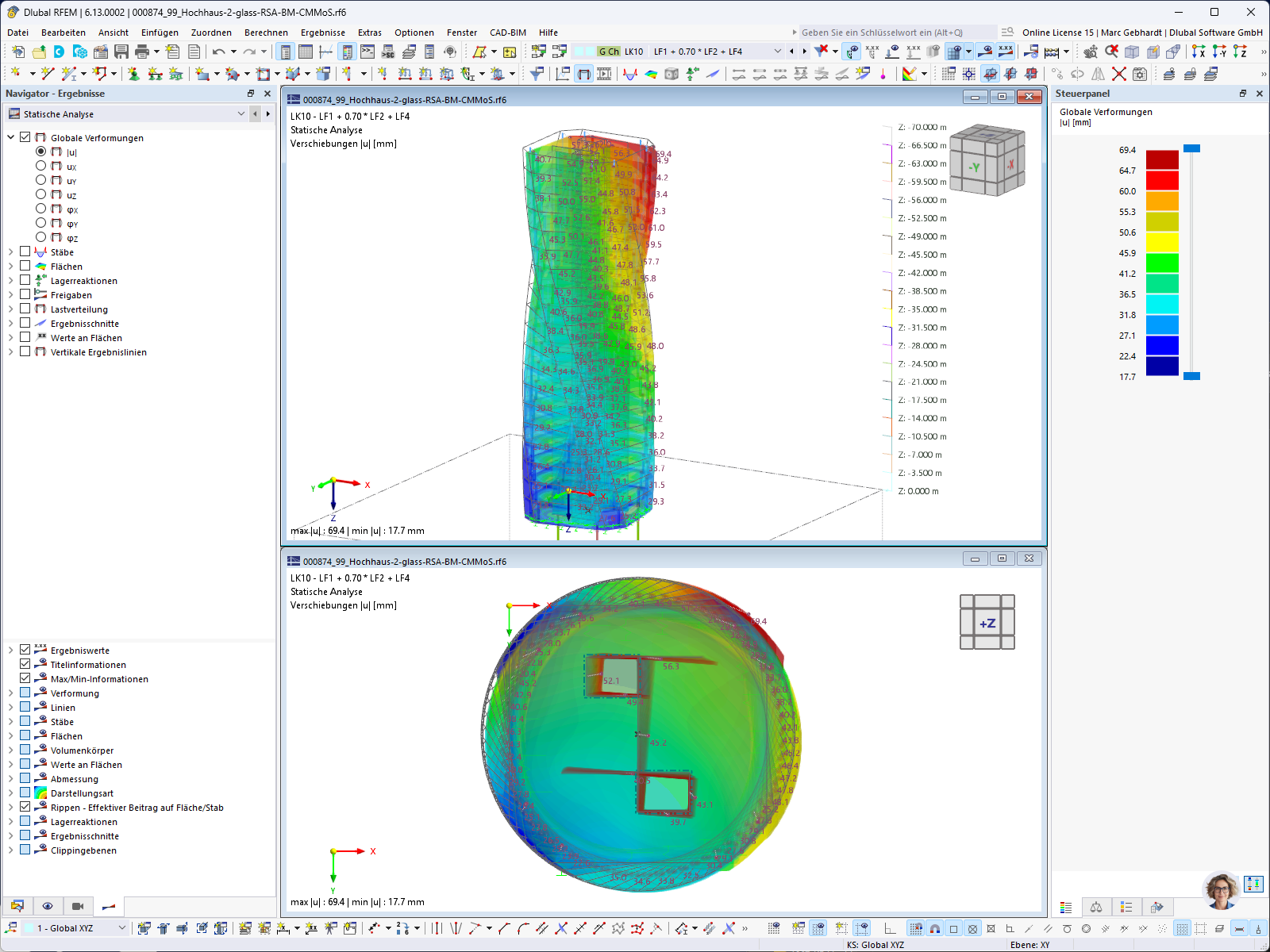

The image shows the total deformation due to the characteristic load combination with prevailing wind load and accompanying live load. The upper part shows an isometric view and the lower part a top view.
3D Model
Specifications
| Number of Nodes | 849 |
| Number of Lines | 1063 |
| Number of Members | 300 |
| Number of Surfaces | 362 |
| Number of Solids | 0 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 16 |
| Number of Result Combinations | 1 |
| Total Weight | 10049.760 t |
| Dimensions (Metric) | 80.000 x 70.000 x 80.000 m |
| Dimensions (Imperial) | 262.47 x 229.66 x 262.47 feet |
