KB 1967 | Horizontal Accelerations from RSA for Equivalent Load

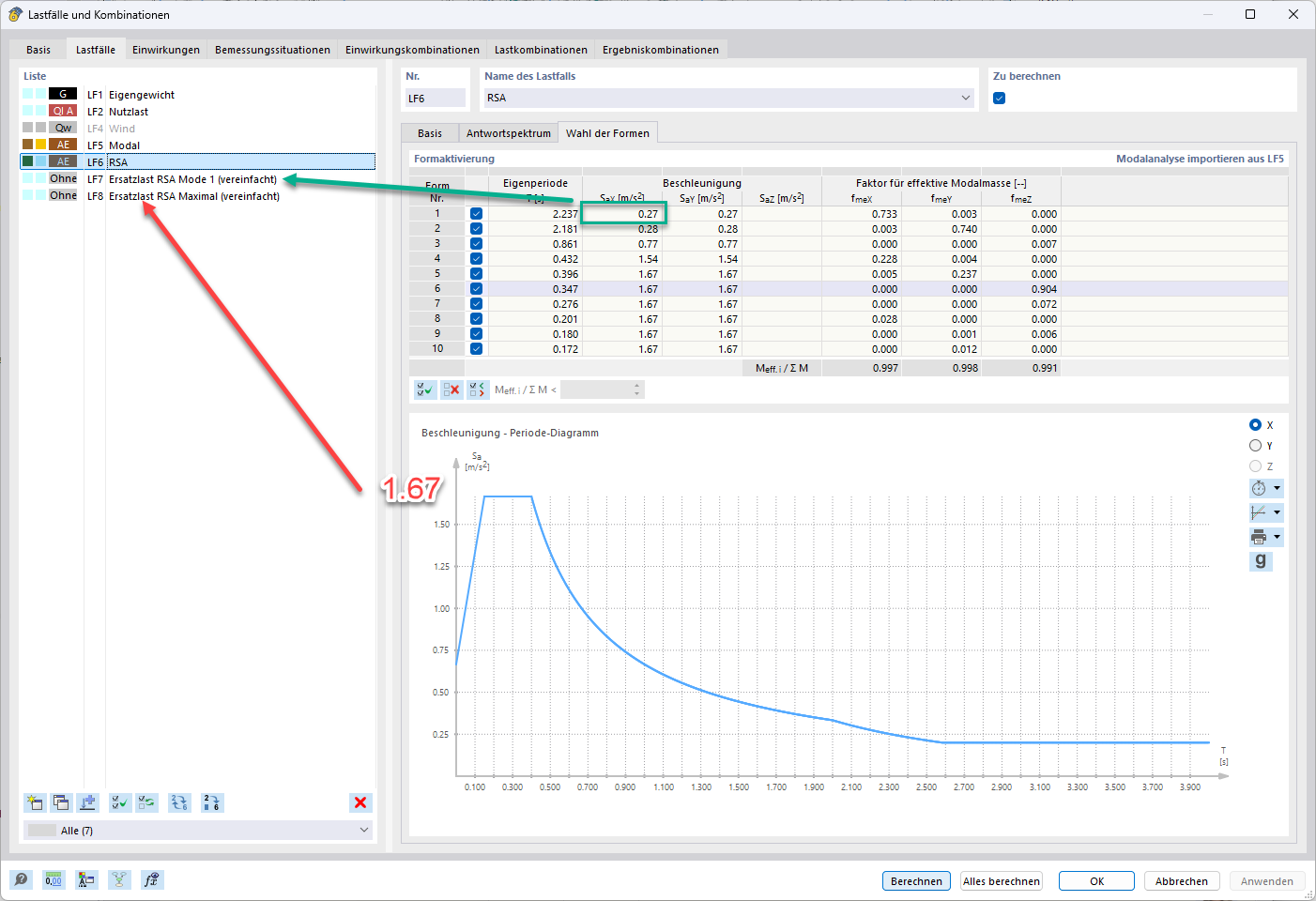

The image shows the load cases and combinations user interface for entering the response spectrum. The “Selection of Modes” tab displays the acceleration of the mode shapes resulting from the acceleration-period diagram.
3D Model
Specifications
| Number of Nodes | 849 |
| Number of Lines | 1063 |
| Number of Members | 300 |
| Number of Surfaces | 362 |
| Number of Solids | 0 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 16 |
| Number of Result Combinations | 1 |
| Total Weight | 10049.760 t |
| Dimensions (Metric) | 80.000 x 70.000 x 80.000 m |
| Dimensions (Imperial) | 262.47 x 229.66 x 262.47 feet |
