KB 1967 | Resulting Soil Stress Distribution from RSA Equivalent Load

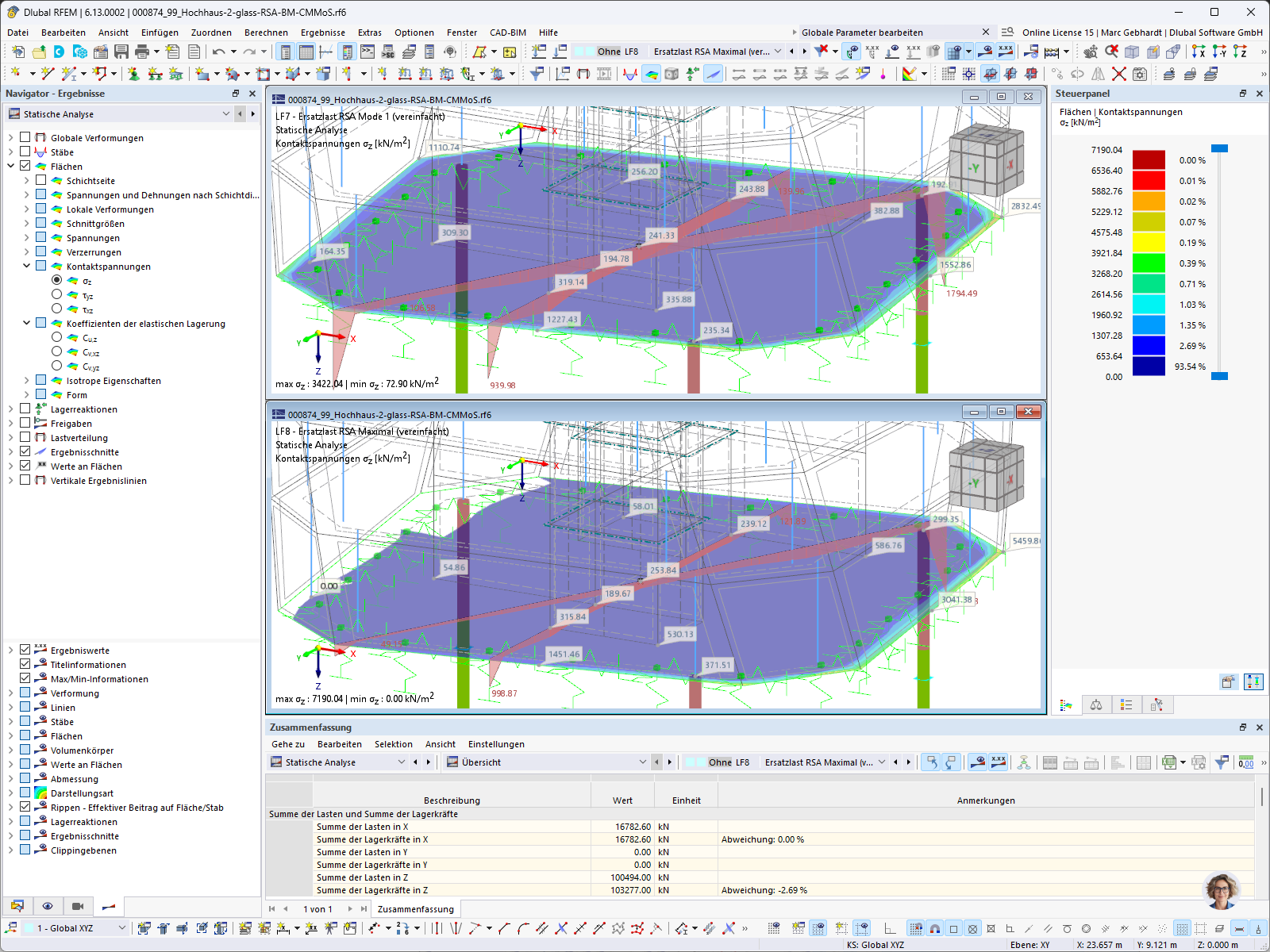

The image shows the resulting contact pressures of the equivalent load cases from the horizontal accelerations of the response spectrum. In the upper part from the first mode shape and in the lower part from the plateau acceleration.
3D Model
Specifications
| Number of Nodes | 849 |
| Number of Lines | 1063 |
| Number of Members | 300 |
| Number of Surfaces | 362 |
| Number of Solids | 0 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 16 |
| Number of Result Combinations | 1 |
| Total Weight | 10049.760 t |
| Dimensions (Metric) | 80.000 x 70.000 x 80.000 m |
| Dimensions (Imperial) | 262.47 x 229.66 x 262.47 feet |
