RSTAB Model of Kitchen Tower Roof Structure

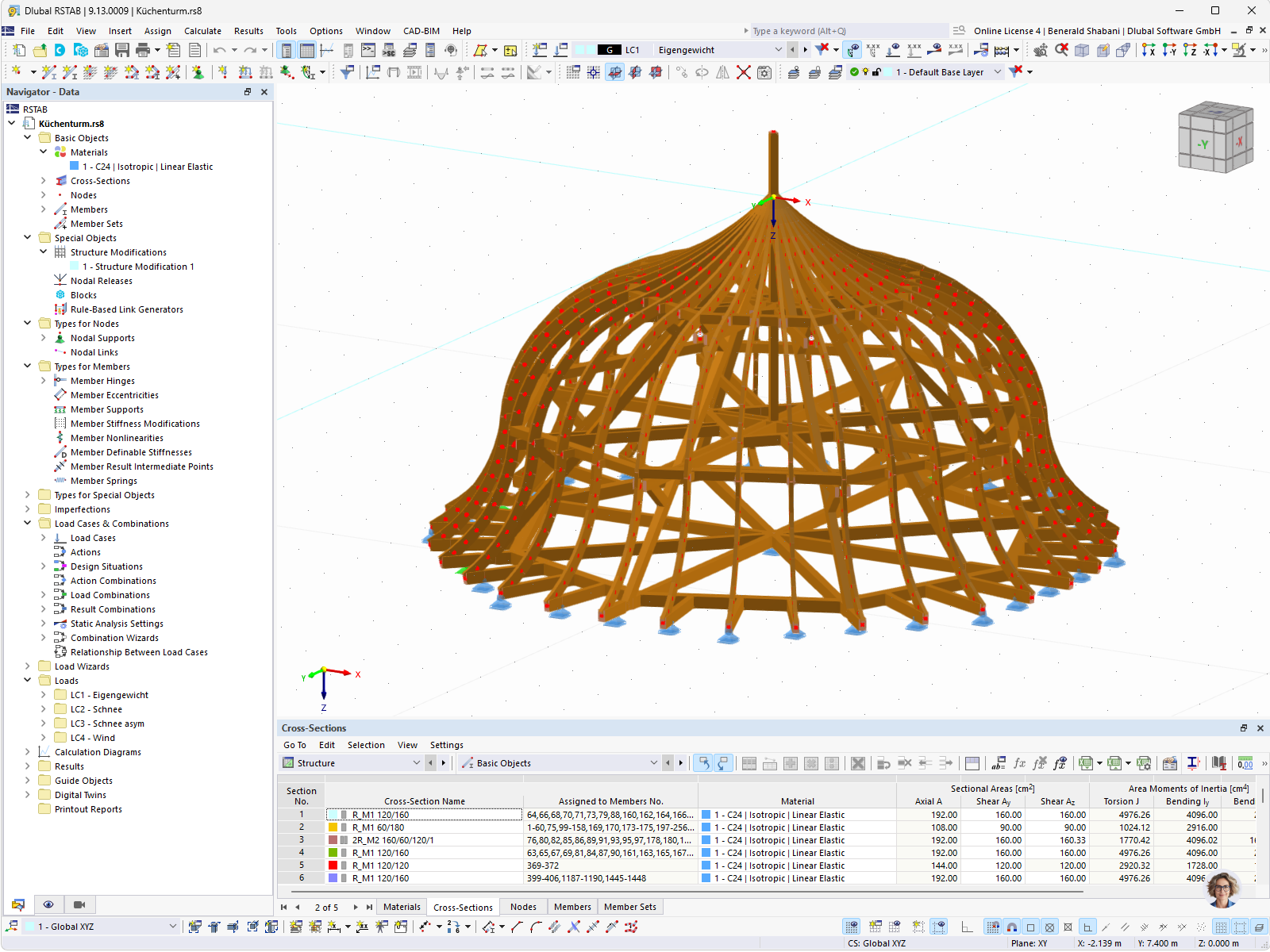

3D model of a complex roof structure of the kitchen tower in the RSTAB program.
The image shows a detailed 3D model of the roof structure of the kitchen tower, developed in the RSTAB program. The structure consists of several steel beams that are precisely connected to each other to ensure stability and functionality. There are a variety of truss nodes that divide the structure and display a complex geometry. This is an example of precise engineering work in the field of structural design. Photo by ©ALS Adelmann-Landgraf-Schäfer.
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 1201 |
| Number of Members | 1404 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 21 |
| Number of Result Combinations | 4 |
| Total Weight | 3.511 t |
| Dimensions (Metric) | 10.200 x 10.200 x 6.500 m |
| Dimensions (Imperial) | 33.46 x 33.46 x 21.33 feet |
| Program Version | 8.39.01 |
