Automatic Dimensioning of End Plate

Automatic dimensioning of an end plate in the Steel Joints add-on.

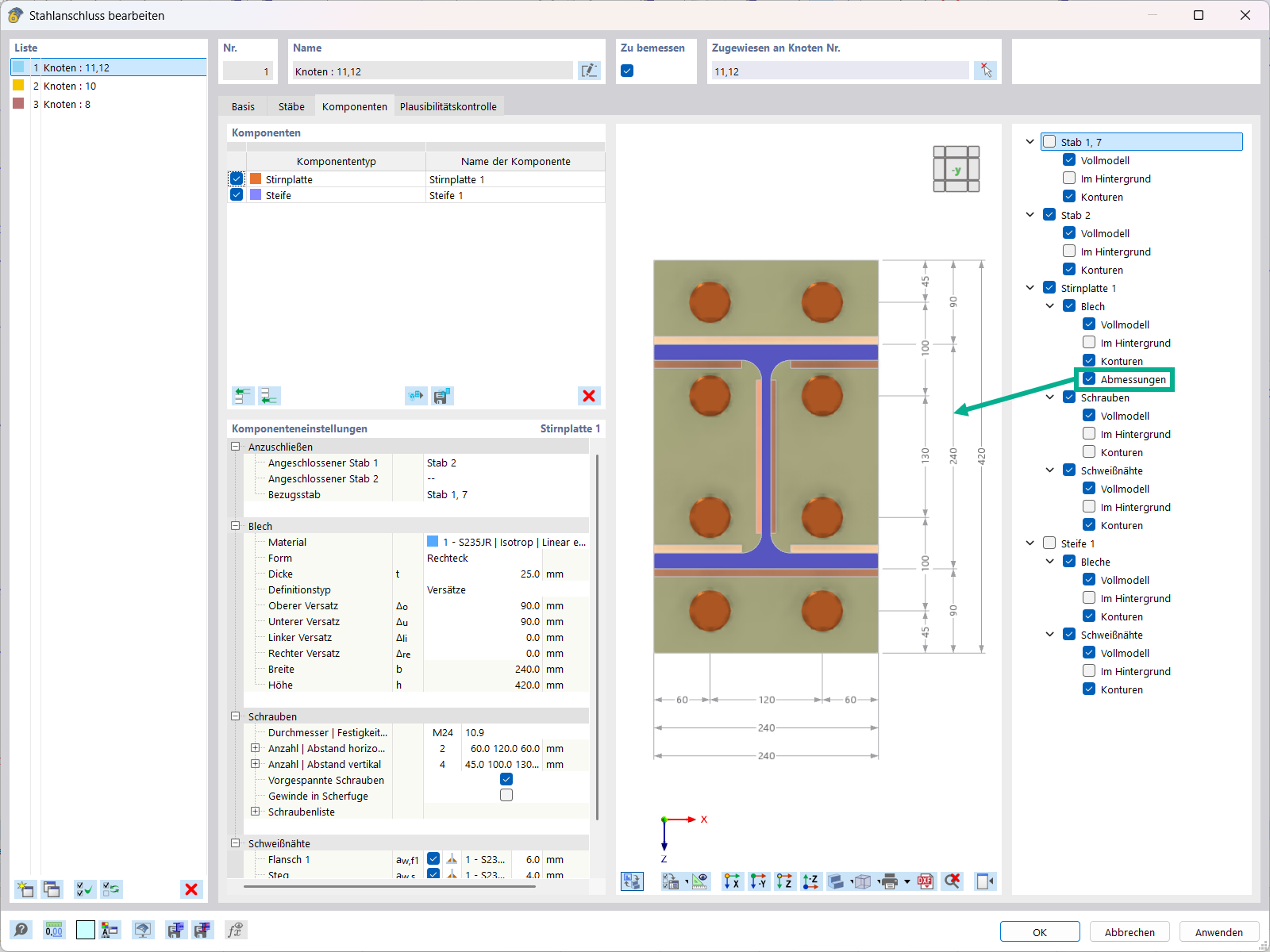

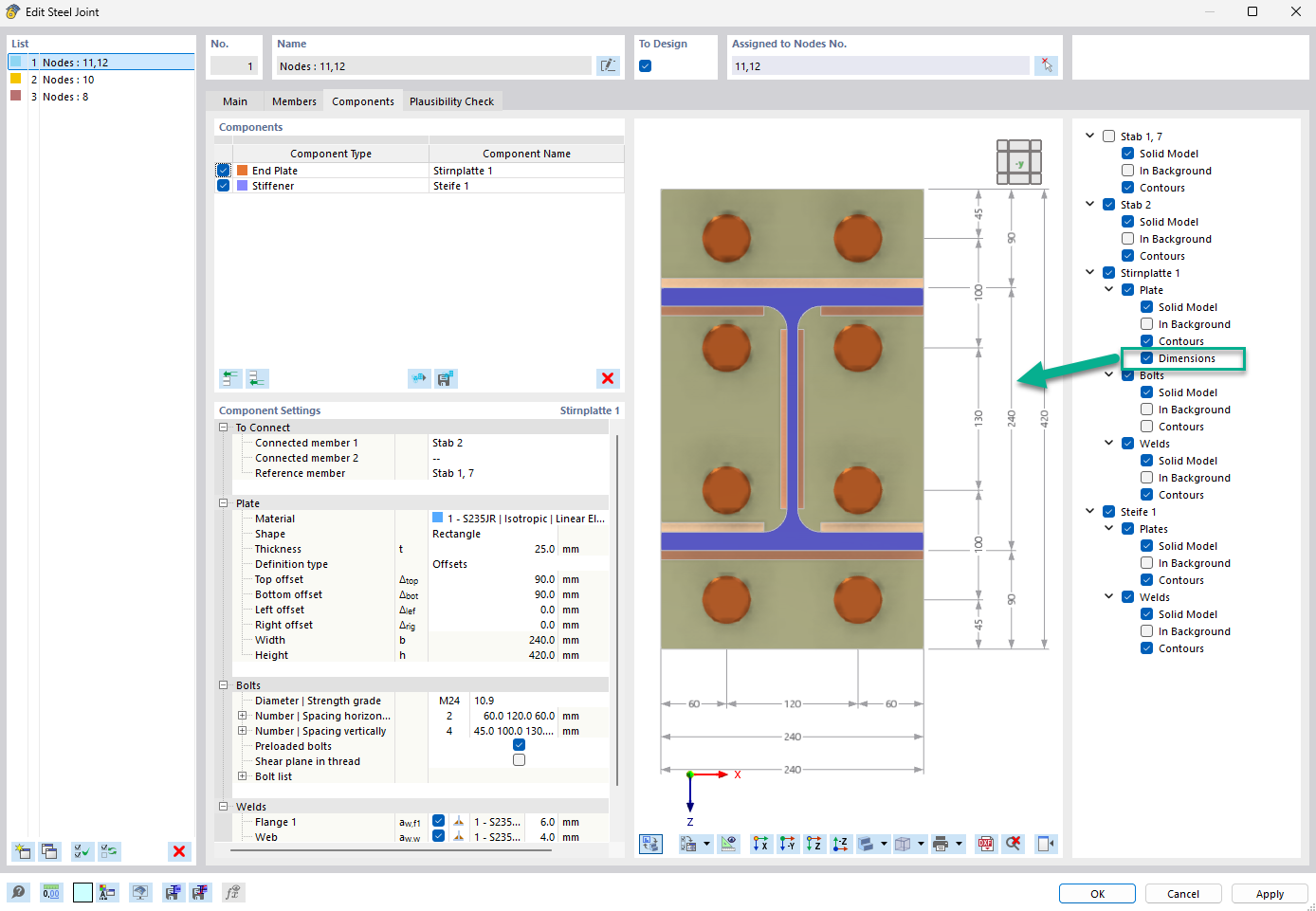

The image shows the automated dimensioning of an end plate in the Steel Joints add-on. The option to enable automatic dimensioning is displayed in the expandable navigator on the right. The generated dimension chains can be adjusted by shifting or deleting them.
