Automatic Dimensioning of End Plates

In the Steel Joints add-on, end plates can be designed automatically. Automatic design can be enabled in the expandable navigator on the right. The generated dimension chains can be deleted and moved.

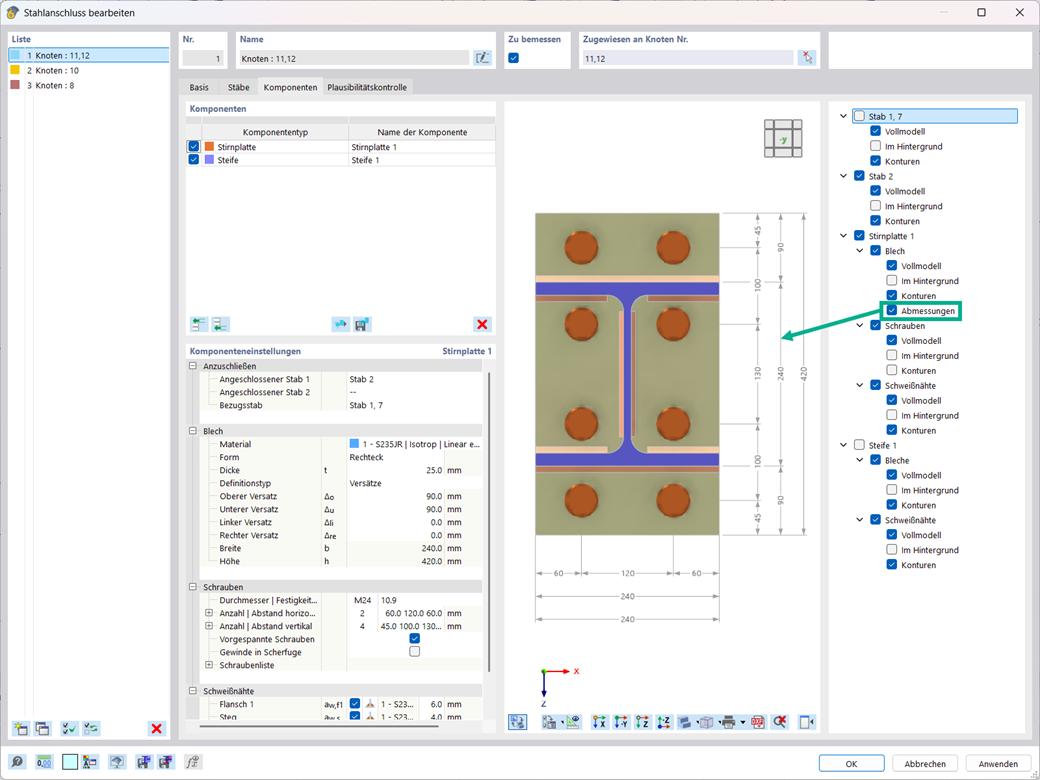

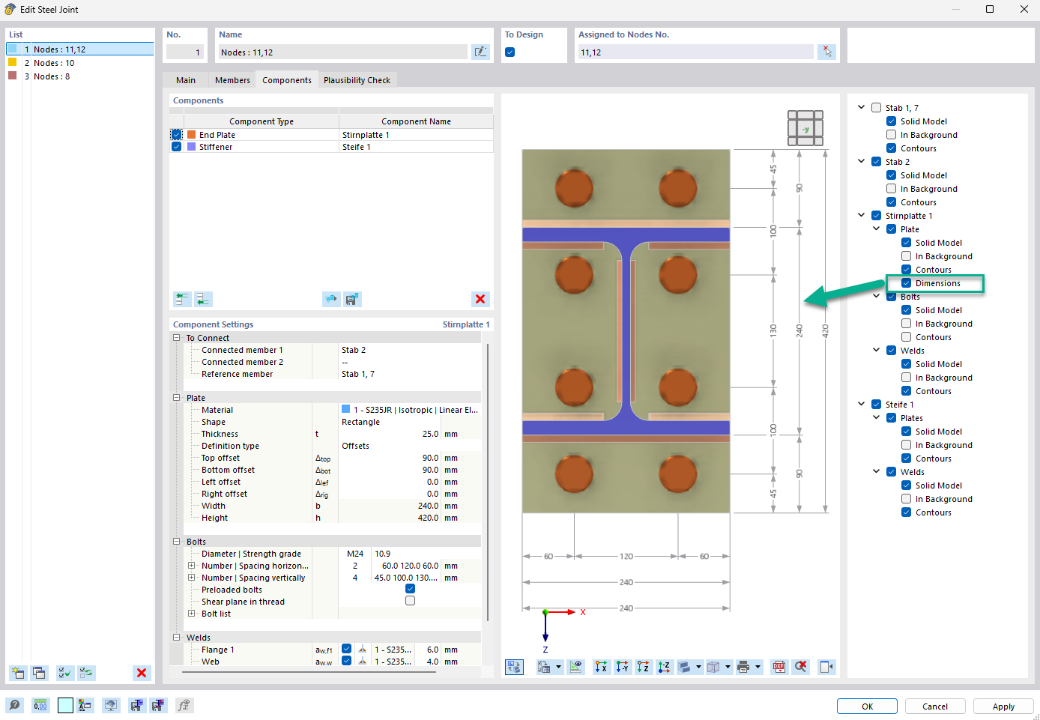

Automatic dimensioning of an end plate in the Steel Joints add-on.
Automatic Dimensioning of End Plate
;
