RFEM 6 Deformation Results of Casting Plant Expansion

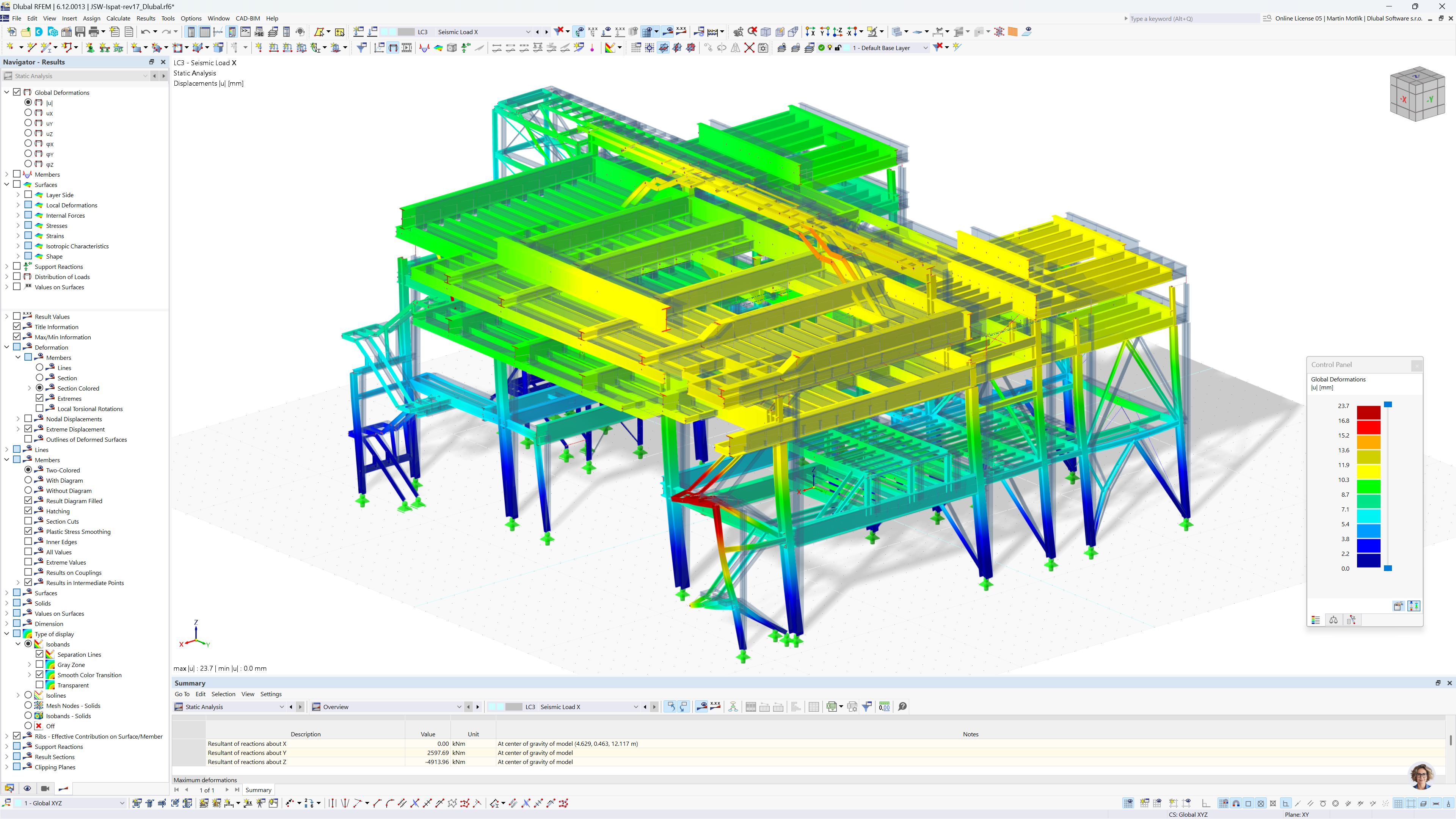

Seismic stress causes global deformation in a continuous casting plant model analyzed with RFEM 6.
The RFEM 6 model showcases a continuous casting plant with an extension, highlighting the global deformation results due to seismic stress. The simulation provides insights into structural integrity under dynamic conditions. The illustration demonstrates the advanced capabilities for seismic analysis in the RFEM environment. Structural model © IB Mauss.
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 1741 |
| Number of Lines | 2225 |
| Number of Members | 2142 |
| Number of Surfaces | 4 |
| Number of Load Cases | 16 |
| Number of Load Combinations | 23 |
| Number of Result Combinations | 1 |
| Total Weight | 907,917 t |
| Dimensions (Metric) | 34.455 x 50.355 x 23.540 m |
| Dimensions (Imperial) | 113.04 x 165.21 x 77.23 feet |
| Program Version | 5.04.00 |
