Deformation Results in Continuous Casting Plant Model

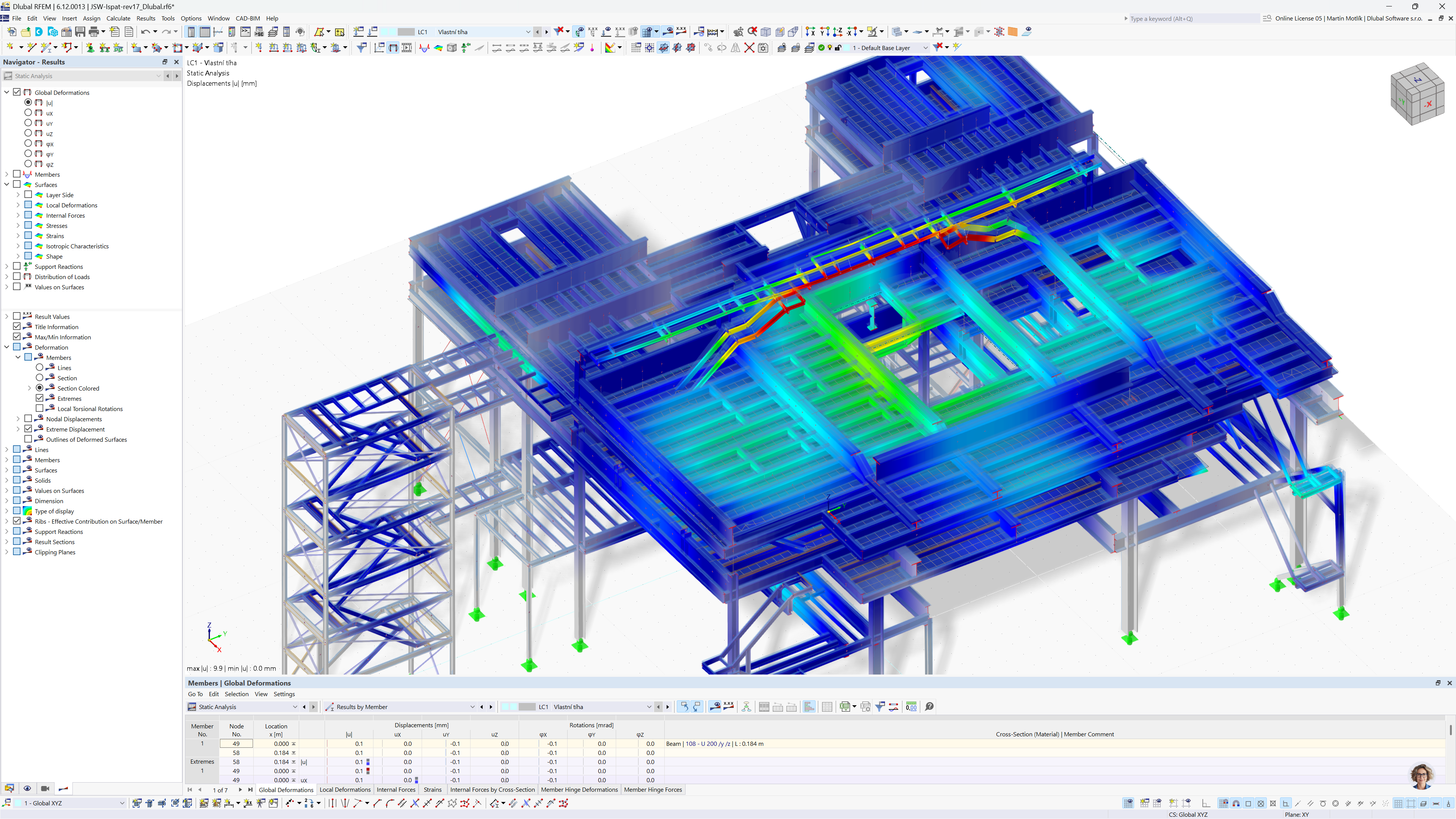

Structural model of a continuous casting plant showing global deformation due to self-weight in RFEM 6.
The RFEM model depicts a continuous casting plant with an extension, demonstrating the global deformation results under the influence of self-weight. The visual representation highlights how the structure responds to natural gravitational forces, using RFEM 6's capabilities for detailed analysis. The structural model was created by [https://www.ib-mauss.de/ IB Mauss].
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 1741 |
| Number of Lines | 2225 |
| Number of Members | 2142 |
| Number of Surfaces | 4 |
| Number of Load Cases | 16 |
| Number of Load Combinations | 23 |
| Number of Result Combinations | 1 |
| Total Weight | 907,917 t |
| Dimensions (Metric) | 34.455 x 50.355 x 23.540 m |
| Dimensions (Imperial) | 113.04 x 165.21 x 77.23 feet |
| Program Version | 5.04.00 |
